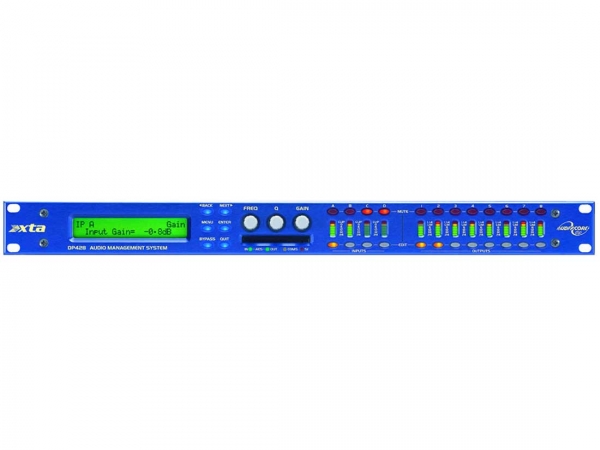

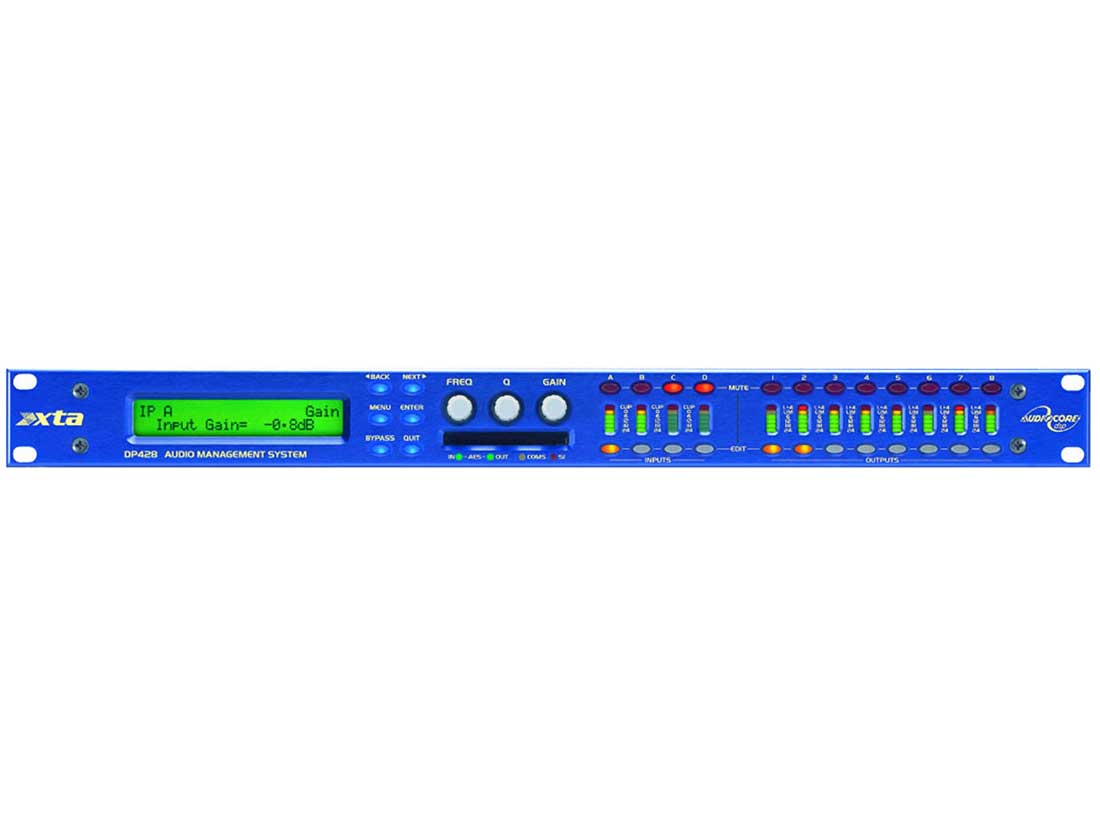

DP428
The DP428 is XTA’s most advanced speaker management system. With 4x8 matrix flexibility and 48dB crossover slopes, sophisticated tools are close at hand. An array of filters types are available including parametric, shelving, bandpass, notch, and elliptical. Phase on all inputs and outputs is adjustable in 2 degree steps. AES/EBU inputs and outputs are built-in and easily selectable. Two stages of limiting insure safety further down the audio chain. 96kHz/24-bit internal processing is on board for pristine audio quality. The DP428 puts XTA’s transparent algorithms to work in a compact 1U package that remains easy to use.
The DP428 is a powerful DSP based audio processor, ideally suited for install applications, where it combines the functions of a multitude of conventional products in a compact 1U unit with extensive remote control capabilities. To achieve this, the DP428 has four inputs and eight outputs which can be configured in a selection of basic crossover modes – 4 x 2 way 2 x 3 way + 2 Aux 2 x 4 way and 1 x 8 way. It also offers a “free assign” mode, which allows completely flexible routing of any output from any combination of inputs.
Each input has a gain control, variable delay, a 28 band graphic equaliser and a further eight bands of fully parametric equalisation. The parametric filter bands have a large selection of different filter types available, including shelving, notch, band-pass, phase and elliptical behaviours.
Each output has a gain control, variable delay, high and low pass crossover filters, nine bands of fully parametric equalisation, polarity switching and, additionally, a fully featured limiter, and a final clip limiter. The crossover filters offer slopes of up to 48dB/Octave., with a variety of responses available.
The DP428 is also equipped with AES/EBU digital inputs and outputs, and includes a sample rate converter, capable of accepting anything from 32 kHz up to 192 kHz.
It may be controlled externally by XTA’s proprietary Windows software, along with existing and future ‘Audiocore’ products.
The DP428 features superb audio quality – carefully optimised double precision signal processing coupled with 24 bit conversion ensure a dynamic range in excess of 117dB. The high sampling rate of 96 kHz means minimal filtering providing exceptional sonic purity with a bandwidth in excess of 32 kHz.
A flexible 4-input/8-output multi-mode format caters for any configuration, regardless of scale.
Both routing of inputs to outputs, and ganging (for editing) are completely flexible.
A completely new SHARCTM based DSP platform supplies phenomenal computational power, allowing the unit to provide not only multiple bands of standard parametric equalisation on every input and output, but an additional full spectrum graphic equaliser on each of the four inputs. This additional power also permits both program limiters and no overshoot clip limiters on each output.
Delay of up to 650mS may be independently set for each output, with an exceptionally fine minimum increment of 300nS, which corresponds to a distance change of 0.1mm
The comprehensive standard specification also includes up to 255 memories, and remote control via MIDI, RS232 or RS485 ports, with security lockout.
