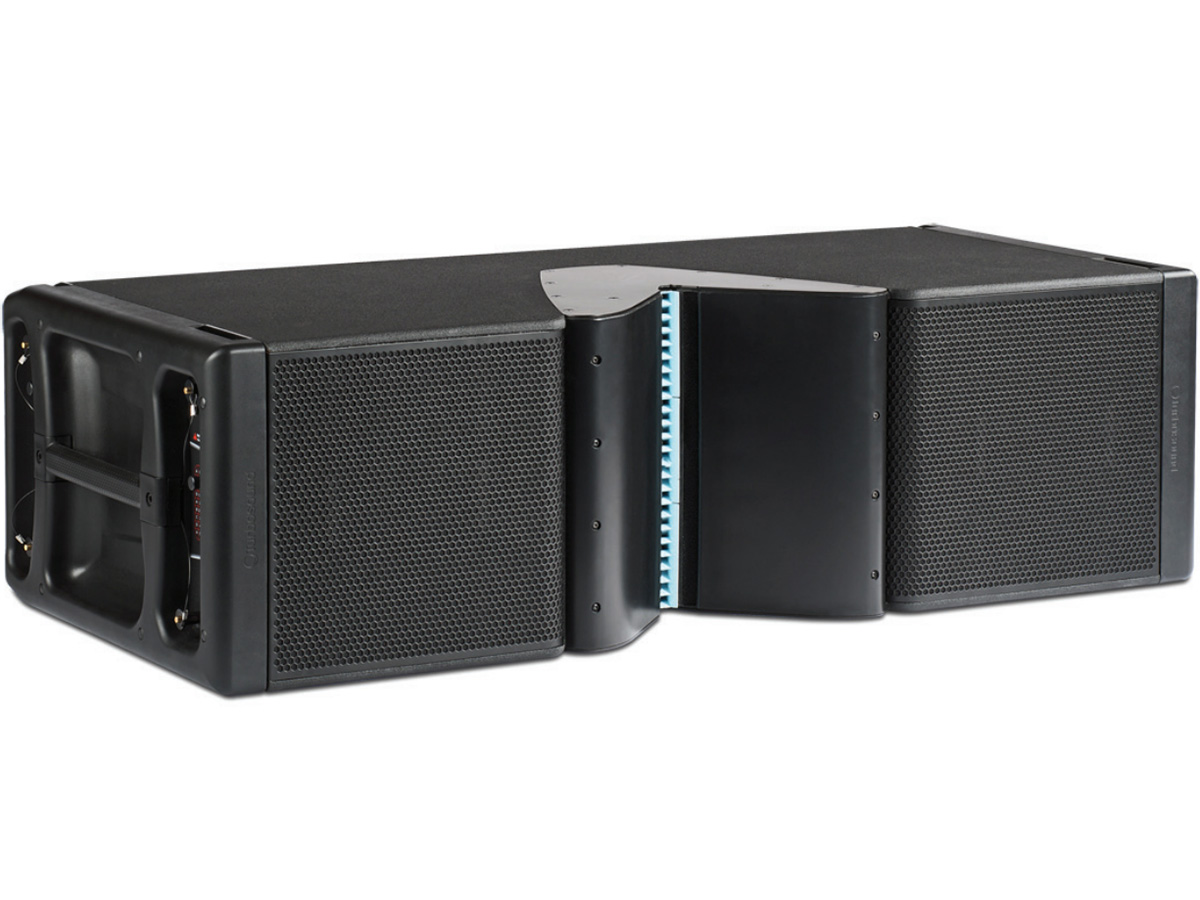

FLASHLINE TFS-900H
The Flashline TFS-900 System is a complete, fully integrated large scale line array sound reinforcement system comprising loudspeakers, amplification and system control racks, flying hardware, and transport
The Flashline TFS-900 System is a complete, fully integrated large scale line array sound reinforcement system comprising loudspeakers, amplification and system control racks, flying hardware, and transport cases in a very powerful and space-efficient format.
The Flashline system is easily capable of delivering full range (35Hz to 20kHz) coherent sound with very low distortion in the biggest arenas, both indoors and outdoors. Flashline is uniquely configured as a five-way system with the TFS-900H's output covering four frequency bands from 60Hz to 20kHz, while the TFS-900B subwoofer provides sub-bass frequencies down to 35Hz. The loudspeaker complement comprises a total of eleven custom designed drive units: three high frequency compression drivers loaded by a Dendritic waveguide, two 6.5' high-mid drivers loaded by a Polyhorn waveguide, four horn-loaded 6.5' low-mid frequency drivers, and two horn-loaded 12' low frequency drivers that utilise both front and rear cone radiation for maximum efficiency.
The rigging hardware is fully integrated into the end-cheeks on each side of the TFS-900H cabinet, which also provide grab handle positions. drop links at the front and rear of the box engage in the flygear of the box above in the array to give a range of inter-cabinet angles from 0° to 5°. TFS-900H cabinets are normally transported four-up on the TFS-DOLLY and can be flown right off the dolly in blocks of four, with the rigging hardware already pre-configured for use. A simple TFS-GRID and TFS-TIP system is used to fly a typical array; no additional external parts are required to fly the system.
Driver maintenance can be performed without removing cabinets from the dolly because all the drivers can be accessed either from the front (the entire mid/high section is removeable) or from the rear via the driver access doors.
Amplification is provided in the form of the highly advanced and extremely powerful 20000DP four channel amplifier with Lake processing and Dante networking built in. The power capability of the TFS-900H's four frequency bands exactly matches the output of the 20000DP's four output channels, with only four racks of three amplifiers required to deliver optimum energy transfer into a system of 18 TFS-900H tops and 12 TFS-900B subs.
The TFS-900H cabinet is constructed from 15mm birch plywood (the TFS-900B subwoofer is 18mm). Both cabinets are finished in black TourTough finish with IP54 rated stainless steel perforated grilles. A recessed rear panel carries two parallel-linked Speakon NL8 connectors for input and loop-through connections.
Features
- Large scale line array
- 5-way 2-box system
- Ultra low distortion
- Eleven drive units across four frequency bands in the TFS-900H top box
- 90° horizontal dispersion, vertical dependent on array
- 149dB peak output
- Integrated flygear
- Neodymium drive units
- Speakon NL8 connectors
- TourTough IP54 finish
Applications
- Concert tours
- Stadia / auditoria
- Music festivals

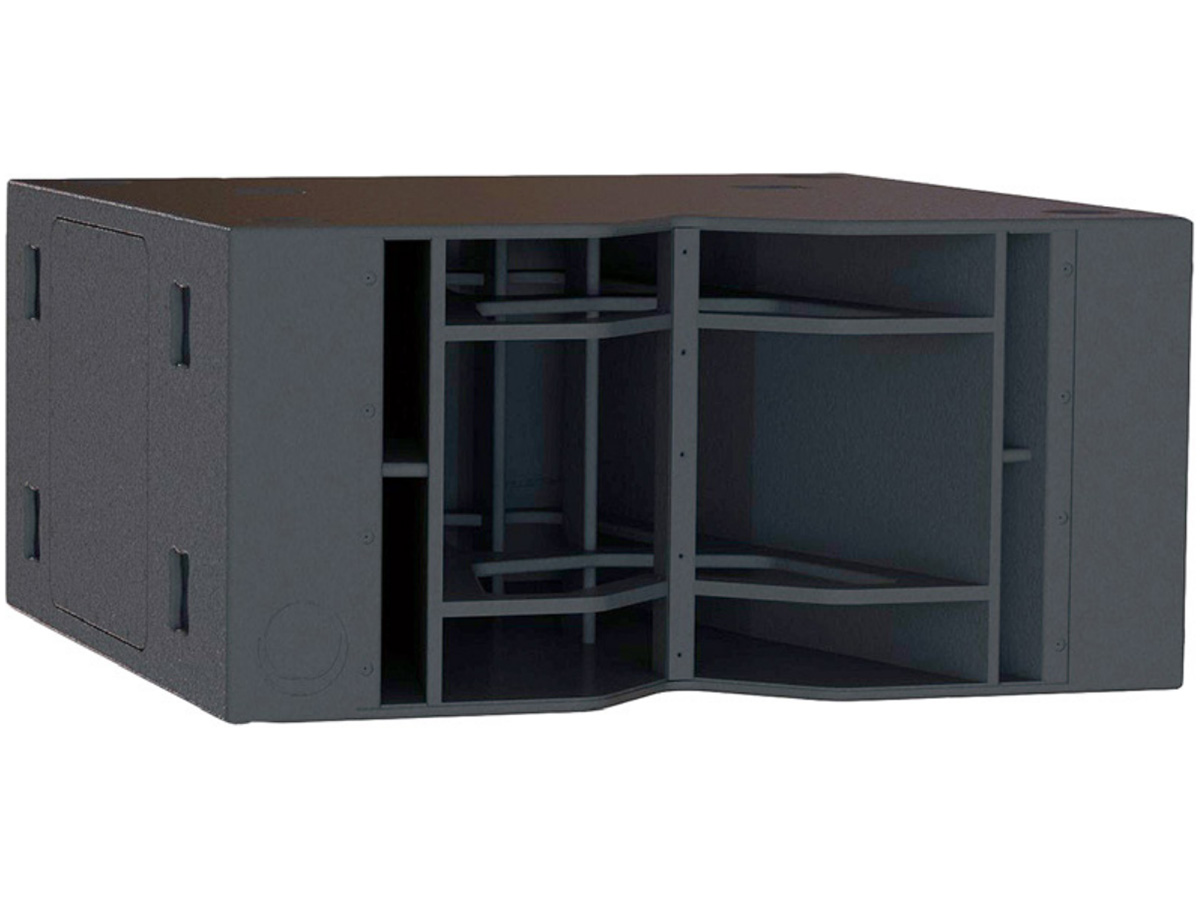

FLASHLINE TFS-900B
Dual 18" Horn Loaded Subwoofer for Touring Applications
The TURBOSOUND FLASHLINE system is a complete, fully integrated large scale line array sound reinforcement system comprising loudspeakers, amplification and system control racks, flying hardware, and transport cases in a very powerful and space-efficient format. The TURBOSOUND FLASHLINE system is easily capable of delivering full range (35 Hz to 20 kHz) coherent sound with very low distortion in the biggest arenas, both indoors and outdoors. TURBOSOUND FLASHLINE is uniquely configured as a five-way system with the TFS-900H's output covering four frequency bands from 60 Hz to 20 kHz, while the TFS-900B subwoofer provides sub-bass frequencies down to 35 Hz.
The FLASHLINE TFS-900B is a 6,400 Watt subwoofer designed for touring and fixed installation applications. It consists of two carbon fibre loaded 18" neodymium low frequency drivers utilising specialised voice coils wound on both the inside and the outside of the former for higher magnetic density, which results in better cooling, higher power handling, and improved efficiency. These high power drivers are mounted in a hybrid horn-loaded enclosure which makes use of output from the rear of the cones as well as the front, providing exceptionally high output at sub-bass frequencies. The TFS-900B is designed for ground stacking with the FLASHLINE TFS-900H flown line array.
The cabinet is constructed from extensively braced 18mm birch plywood with multiple recessed handle positions, side driver access doors and heavy duty wheels. It is fitted with a stainless steel IP54 rated grille, and is finished in black TourTough coating. A recessed panel at the rear of the cabinet carries two parallel linked Neutrik speakON* NL4 connectors for input and link through connections.
Features
- Horn loaded ground stack subwoofer for touring applications
- 1,600 Watts continuous, 6,400 Watts peak power
- Carbon fibre loaded 18" neodymium motor low frequency drivers with inside/outside wound coil
- Low distortion horn design for maximum sound pressure level
- All components weather resistant to IP54 for outdoor use
- 18 mm (3/4'') birch plywood enclosure with hard wearing semi matt black paint finish
- Powder coated perforated plated steel mesh grille with foam backing
- Neutrik speakON* NL4 connectors for reliable long life operation
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
