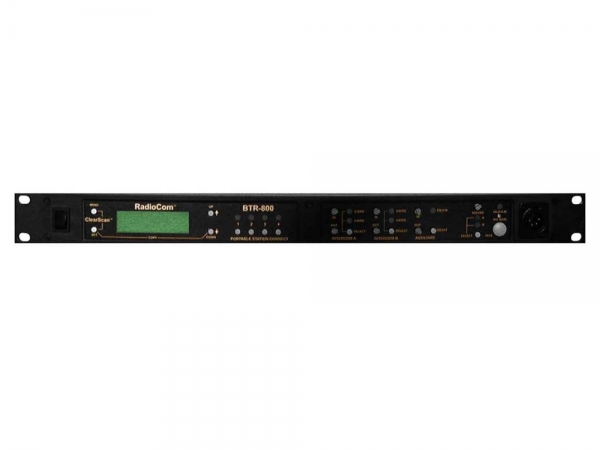

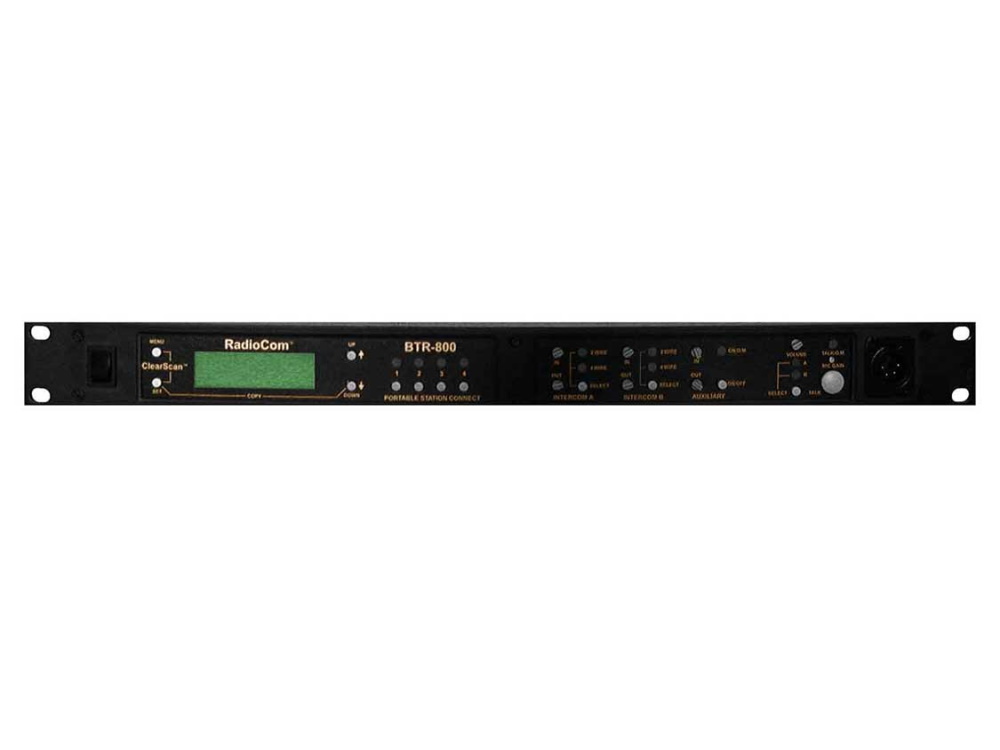

BTR-800
Two-Channel UHF Synthesized Wireless Intercom Base Station
- Backlit Base Station LCD Allows the user to easily monitor the beltpack?s status
- Base Stations are Table or Rackmountable
- Beltpack units contained in a weather and shock resistant die cast magnesium case
- ClearScan Function Automatically finds the best channels on which to operate
- Compatible with Audiocom, RTS, Clear-Com, & Other Wired Intercom Types
- Convenient IEC Power Connector on the Base Station
- Frequency-Agile Base Station & Beltpacks
- Full Duplex (Simultaneous Talk & Listen) Operation
- Relay Contract Closure on the Base when the SA Button is Pressed
- SA (Stage-Announce) Beltpack Control
- TR-825 Features Two Audio Channel Binaural Operation in Either Stereo or Mono Mode
- Two Channels of Intercom Audio
- WTA (Wireless Talk About) Beltpack Control

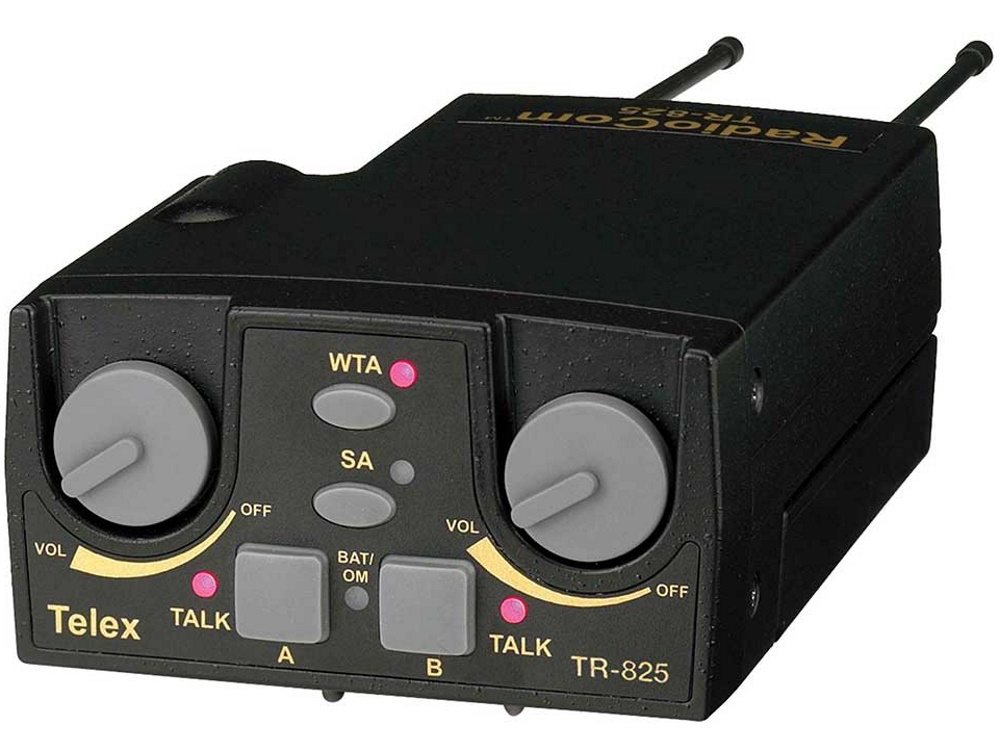

TR-825
Two-Channel UHF Binaural Wireless Beltpack
The RTS RadioCom TR-800 and TR-825 are 2-audio channel UHF frequency-agile wireless beltpacks for use with the BTR800.
The TR-825 is a dual-listen beltpack, allowing you to listen to tech in one ear and production in the other. Individual volume controls also allow for easy level adjustment. The TR-800 and the TR-825 both have an all metal cast magnesium case, an LCD-based user interface, stage announce activation, WTA (Wireless Talk Around), enhanced ClearScan,detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics.
On/Off & Volume Control
Turns the beltpack power on and controls headset volume.
Wireless Talk Around (WTA)
When pressed, the user?s audio is disconnected from the wired intercom, auxiliary input/output and the base station?s local headset. Other beltpack users, on that audio channel, can hear the user as normal.
Stage Announce
When pressed, the user?s audio is routed to the SA (Stage Announce) connector on the back of the base station. The user also loses their sidetone as an indication that stage announce is activated. The other wireless beltpacks and wired users do not hear the user?s audio. The button is nonlatching and activates the nearby red LED.
Audio Channel select Button
Allows user to select either audio channel A or B.
Bat/Overmod Light (BAT/OM)
Light flashes once when unit is turned on if the battery is good. If the light stays on, battery is low. If the light does not flash, battery is dead. A normal microphone gain setting causes the LED to flash at the beginning of most words at normal speech levels. If the gain is too high, the LED is red during the complete word at normal speech levels.
Talk Light
LED is on when the talk button, SA or WTA is active.
Talk Button
The TALK LED, turns red when enabled. A quick press and release latches the talk function, unless latching has been disabled. Holding the button for over half a second causes the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again turns it off.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Used Telex
For more than 75 years, Telex has been a leading manufacturer of dependable, top-of-the-line communication equipment. For more than 50 years, Telex innovations have provided pilots with the quality communications they depend on for safe, enjoyable flying.
Only Telex offers the unmatched combination of advanced microphone technology, superior noise protection, comfort, and reliability. Telex radio dispatch systems offer the ultimate in interoperability, reliability, and scalability for ROIP/VOIP communications — including the easy-to-use C-Soft control software with optional direct IP interfaces and the IP-224 radio gateway for converting analog communications to IP.With robust durability and clear voice intelligibility at the heart of these paging and critical communications microphones, each model in the TELEX and Electro-Voice paging microphone lines rise to all challenges, delivering on the reliable workhorse reputation they have earned.
Telex SoundMate personal listening systems help overcome background noise and poor building acoustics that can make listening difficult for the hearing impaired listener. A Telex base station, portable belt pack transmitter, your choice of receivers, and a wide assortment of accessories allow you to meet the needs of individuals who require hearing assistance.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Efficiency Rating: Level of sound output measured at a prescribed distance with a standard input power. Efficiency rating standard is 1 watt (2.83V at 8 ohms) at 1 meter over a specified frequency range and is measured in decibels.
Equalization: Loosely, any type of relative frequency adjustment. Specifically, the process of changing the frequency balance of an electrical signal to alter the acoustical output.
Equalizer: A component designed to alter the frequency balance of an audio signal. Equalizers may be graphic, parametric, or a combination of both.
Fade: A gradual increase in audio, i.e. a fade-up, or a gradual decrease in audio, i.e. a fade-down.
Feedback: The transmission of current or voltage from the output of a device back to the input, where it interacts with the input signal to modify operation of the device. Feedback is positive when it’s in phase with the input and negative when it’s out of phase.
FM: Frequency Modulated.
Frequency: The number of cycles (vibrations) per second. In audio, audible frequencies commonly range from 20 to 20,000 cycles per second (Hz). In video, frequency is used to define the image resolution. Low-frequency video images depict large objects or images. Higher frequencies depict smaller objects (finer details.
Frequency Response: A measure of what frequencies can be reproduced and how accurately they are reproduced. A measurement of 20 to 20,000 Hz, 3dB means those frequencies between 20 and 20,000 Hz can be reproduced no more than 3 dB above or below a reference frequency level.
Full-Range: A speaker designed to reproduce the full range (20 Hz to 20 kHz) of audio frequencies.
Gain: Increase in level or amplitude.
Gooseneck: This refers to a microphone with a flexible neck that is most frequently attached to a podium or lectern. It is designed to allow the speaker to raise or lower the microphone to a suitable height.
Graphic Equalizer: A type of equalizer with sliding controls that creates a pattern representing a graph of the frequency-response changes. Raising sliders boosts the affected frequencies lowering sliders cuts (attenuates) the affected frequencies.
HDCP: High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent unauthorized duplication of copyright material.
HDR: Hard-Drive Recorder. Device that uses a computer hard drive to store compressed digital audio and video signals.
High Pass: A filter that passes high frequencies, and attenuates low frequencies. Same as low cut.
Hz: Hertz or cycles per second. Something that repeats a cycle once each second moves at a rate of 1 Hz.
Incue/Inq/In-Point: These words all refer to the initial few seconds of audio signifying the beginning of the production.
Integrated Amplifier: A combination preamp and amplifier.
Impedance: A measure of the impediment to the flow of alternating current, measured in ohms at a given frequency. Larger numbers mean higher resistance to current flow.
KHz: Kilohertz or one thousand Hz.
Lavaliere: A small microphone that attaches to clothing, allowing the speaker to have a hands-free presentation.
Line Array: A group of speakers that have been arrayed or "built up" in the vertical or horizontal plane, which allow for a highly consistent sound field. A Line Array is perfect for medium to large audiences.
Line-Level (Low-Level): A level of electrical signals too low to make the average speaker move sufficiently. Amplifiers receive line-level signals and amplify them to speaker level.
lockout: The final words of a segment used to signify the production’s conclusion.
Low Pass: A filter that lets low frequencies go through but doesn’t let high frequencies go through. Same as high cut.
MHz: Megahertz, or 1 million Hz.
Midbass: The middle of the bass part of the frequency range, from approximately 50 to 100 Hz (upper bass would be from 100 to 200 Hz). Also used as a term for loudspeaker drivers designed to reproduce both bass and midrange frequencies.
Midrange: The middle of the audio frequency range. Also used as a term for loudspeaker drivers designed to reproduce this range.
Mixer: This is the unit in which audio signals are directed from. A mixer provides for both mic and line input combinations while allowing you to control one or more outputs.
MLP: Meridian Lossless Packing. Encoding format that is able to completely reconstruct the original signal at the receiving end. No information is lost or discarded, regardless of how trivial it might be. Used to encode six channels of high-resolution audio on DVD-A.
Mono: Monophonic sound. One channel.
MP3: MPEG-1 Audio Layer-3. Compression scheme used to transfer audio files via the Internet and store in portable players and digital audio servers.
Natural Sound (NATS): The nonverbal audio that occurs in a non-studio setting. NATS can be used to help characterize the setting.
Noise: An unwanted portion of a signal such as hiss, hum, whine, static, or buzzing.
Nonlinear Editing: Digital audio systems that allow for clips to be extracted without affecting the master recording.
