V12

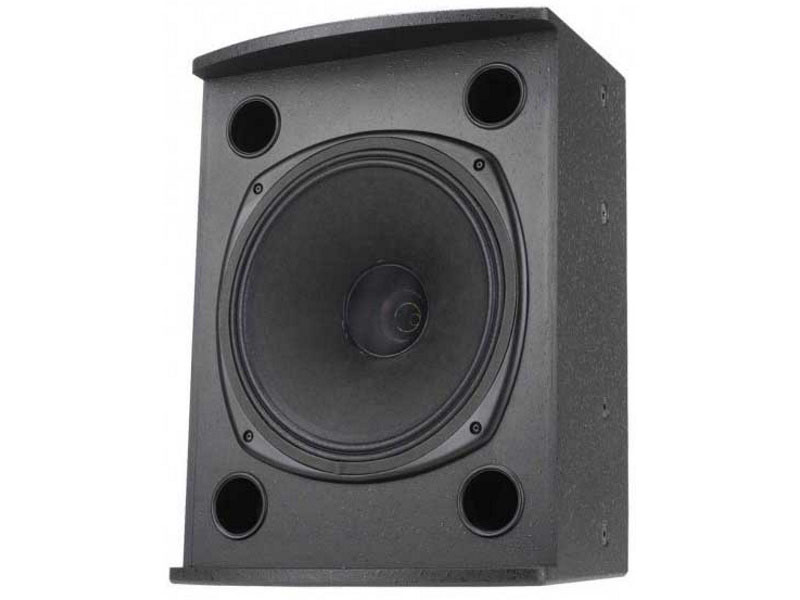

A premium quality installation loudspeaker, the V12 combines high power handling, high efficiency and low distortion into a compact solution for class leading music and speech reproduction quality. The robust cabinet construction houses a high power 300mm (12.00?) point source, constant directivity Dual Concentric drive unit. A drive unit which features a reinforced paper mid bass cone and double rolled cambric surround for high sensitivity, as well as a dual magnet assembly and a Tulip WaveGuide for the high frequency unit.
These two drivers are properly merged into one with the high frequency mounted in the throat of the mid bass; therefore coincidentally aligning both transducers to a point source delivering 90 degree conical dispersion. The result is a smooth and uniform frequency response over a wide coverage area; something unachievable with discrete, two-way designs where in the vertical plane massive cancellations appear off axis at the crossover frequency. This controlled conical dispersion ensures optimal coverage and forward gain, with the marked installation advantage of enabling either vertical or horizontal mounting without any compromise to sound quality.
Whether used for live sound reinforcement, high quality public address or large scale music reinforcement installations, the wide dispersion, even coverage pattern and high power handling means that the V12 excels is applications such as theme pubs and nightclubs, theatre front of house and effects, side fill in movie theatres and cinemas, class leading audio reproduction in houses of worship, theme parks, leisure venues, sports and multi-use stadiums.
Although designed to perform without any external controller, a Tannoy digital system controller will further enhance performance by equalising the system to improve bass performance; this as well as providing a 2-way crossover function to facilitate use with a separate subwoofer system.
Available in black or white, the rugged multi-ply birch cabinet has asymmetrical profile and convenient aspect ratio toallow installation in a variety of configurations. Supplied with a carrying handle, a blanking plate over a 35mm pole mount locatio, 8 x M10 bracket inserts for landscape or portrait mounting and 8 x M10 flying inserts. Tannoy?s proprietary mounting hardware provides multiple options including wall mount, yoke, ceiling saddle, pole clamp, pole mount and eyebolts.
Features
- 300mm (12.00?) point source Dual Concentric driver
- 90 degree controlled conical dispersion for optimum coverage and forward gain
- Compact and versatile enclosure
- High power handling
- High efficiency and low distortion
- Rugged birch plywood construction
- Convenient aspect ratio
- Integral carry handle
- Integral mounting and flying points
- Secure-ET mounting options
- Five year loudspeaker warranty
Applications
- Live sound reinforcement
- High quality public address
- Theme pubs and nightclubs
- Theatre front of house and effects
- Movie theatre and cinema
- Side fill in large-scale music reinforcement
- Theme parks and leisure venues
- Sports and multi-use stadiums
- House of worship
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Used Tannoy
Tannoy Ltd is a British manufacturer of loudspeakers and public-address (PA) systems. The company was founded by Guy Fountain in London, England as Tulsemere Manufacturing Company in 1926 and moved to Coatbridge, Scotland in the 1970s. In 2015 Tannoy was acquired by Music Group (company) along with TC Group which itself had acquired Tannoy in 2002. Later on it was suggested that the Coatbridge facility would be closed and all related activities would be relocated to Manchester, England. However, this was later corrected and in 2016 it was confirmed that Tannoy loudspeaker manufacturing would continue in Scotland, with a brand new manufacturing facility planned.
Actor Cyril Ritchard and three young women listen to the Tannoy public address system in 1948. The name Tannoy is a syllabic abbreviation of tantalum alloy, which was the material used in a type of electrolytic rectifier developed by the company. The brand was trademarked by 10 March 1932, on which date the Tulsemere Manufacturing Company formally registered as Guy R. Fountain Limited. It became a household name as a result of supplying PA systems to the armed forces during World War II, and to Butlins and Pontins holiday camps after the war. Identification being such because the company logo name was prominently shown on the speaker grills. This usage is current as of mid-2010. Tannoy is notable for its 'Dual Concentric' speaker design, which places the tweeter behind the centre of the medium or bass driver. "Dual Concentric" is a trademark although Tannoy is not the only speaker manufacturer to design coaxial speakers. Tannoy's image is particularly linked to studio monitors on the one hand and its Prestige range of home speakers on the other. Prestige speakers use Dual Concentric cone speakers and are easily recognisable by their "vintage" design.
The term "tannoy" is used in older colloquial British English to mean any public-address system or even as a verb - to "tannoy", particularly those used for announcements in public places; although the word is a registered trademark, it has become a genericised trademark. The company's intellectual property department keeps a close eye on the media. To preserve its trademark, it often writes to publications that use its trade name without a capital letter or as a generic term for a PA system.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Efficiency Rating: Level of sound output measured at a prescribed distance with a standard input power. Efficiency rating standard is 1 watt (2.83V at 8 ohms) at 1 meter over a specified frequency range and is measured in decibels.
Equalization: Loosely, any type of relative frequency adjustment. Specifically, the process of changing the frequency balance of an electrical signal to alter the acoustical output.
Equalizer: A component designed to alter the frequency balance of an audio signal. Equalizers may be graphic, parametric, or a combination of both.
Fade: A gradual increase in audio, i.e. a fade-up, or a gradual decrease in audio, i.e. a fade-down.
Feedback: The transmission of current or voltage from the output of a device back to the input, where it interacts with the input signal to modify operation of the device. Feedback is positive when it’s in phase with the input and negative when it’s out of phase.
FM: Frequency Modulated.
Frequency: The number of cycles (vibrations) per second. In audio, audible frequencies commonly range from 20 to 20,000 cycles per second (Hz). In video, frequency is used to define the image resolution. Low-frequency video images depict large objects or images. Higher frequencies depict smaller objects (finer details.
Frequency Response: A measure of what frequencies can be reproduced and how accurately they are reproduced. A measurement of 20 to 20,000 Hz, 3dB means those frequencies between 20 and 20,000 Hz can be reproduced no more than 3 dB above or below a reference frequency level.
Full-Range: A speaker designed to reproduce the full range (20 Hz to 20 kHz) of audio frequencies.
Gain: Increase in level or amplitude.
Gooseneck: This refers to a microphone with a flexible neck that is most frequently attached to a podium or lectern. It is designed to allow the speaker to raise or lower the microphone to a suitable height.
Graphic Equalizer: A type of equalizer with sliding controls that creates a pattern representing a graph of the frequency-response changes. Raising sliders boosts the affected frequencies lowering sliders cuts (attenuates) the affected frequencies.
HDCP: High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent unauthorized duplication of copyright material.
HDR: Hard-Drive Recorder. Device that uses a computer hard drive to store compressed digital audio and video signals.
High Pass: A filter that passes high frequencies, and attenuates low frequencies. Same as low cut.
Hz: Hertz or cycles per second. Something that repeats a cycle once each second moves at a rate of 1 Hz.
Incue/Inq/In-Point: These words all refer to the initial few seconds of audio signifying the beginning of the production.
Integrated Amplifier: A combination preamp and amplifier.
Impedance: A measure of the impediment to the flow of alternating current, measured in ohms at a given frequency. Larger numbers mean higher resistance to current flow.
KHz: Kilohertz or one thousand Hz.
Lavaliere: A small microphone that attaches to clothing, allowing the speaker to have a hands-free presentation.
Line Array: A group of speakers that have been arrayed or "built up" in the vertical or horizontal plane, which allow for a highly consistent sound field. A Line Array is perfect for medium to large audiences.
Line-Level (Low-Level): A level of electrical signals too low to make the average speaker move sufficiently. Amplifiers receive line-level signals and amplify them to speaker level.
lockout: The final words of a segment used to signify the production’s conclusion.
Low Pass: A filter that lets low frequencies go through but doesn’t let high frequencies go through. Same as high cut.
MHz: Megahertz, or 1 million Hz.
Midbass: The middle of the bass part of the frequency range, from approximately 50 to 100 Hz (upper bass would be from 100 to 200 Hz). Also used as a term for loudspeaker drivers designed to reproduce both bass and midrange frequencies.
Midrange: The middle of the audio frequency range. Also used as a term for loudspeaker drivers designed to reproduce this range.
Mixer: This is the unit in which audio signals are directed from. A mixer provides for both mic and line input combinations while allowing you to control one or more outputs.
MLP: Meridian Lossless Packing. Encoding format that is able to completely reconstruct the original signal at the receiving end. No information is lost or discarded, regardless of how trivial it might be. Used to encode six channels of high-resolution audio on DVD-A.
Mono: Monophonic sound. One channel.
MP3: MPEG-1 Audio Layer-3. Compression scheme used to transfer audio files via the Internet and store in portable players and digital audio servers.
Natural Sound (NATS): The nonverbal audio that occurs in a non-studio setting. NATS can be used to help characterize the setting.
Noise: An unwanted portion of a signal such as hiss, hum, whine, static, or buzzing.
Nonlinear Editing: Digital audio systems that allow for clips to be extracted without affecting the master recording.
