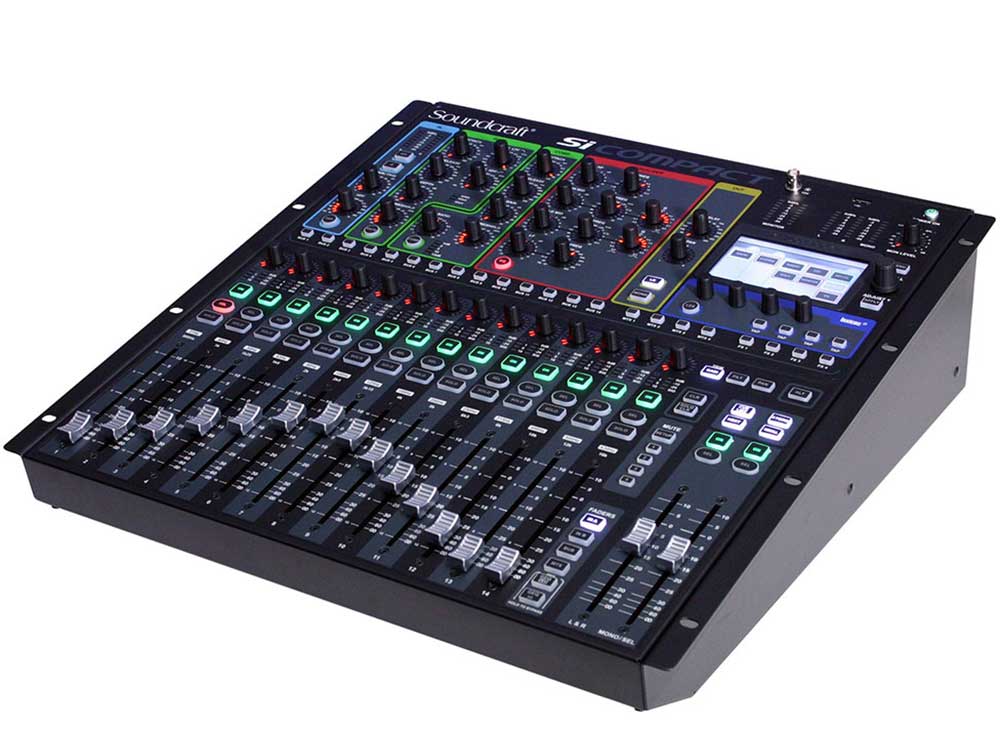

Si Compact 16
Drawing on the heritage of Soundcraft`s acclaimed Si Series digital live sound mixers, the Si Compact packs powerful digital mixing facilities along with stunning Lexicon effects into a small footprint console. All this and more without compromising a powerful feature set.
The Si Compact 16 feature 16 recallable mic pre amps plus 4 stereo returns, AES in and 64 input option slot with a capacity to combine up to 32 of these inputs to mix each input is `fully equipped` with compressors, gates, parametric EQ, High Pass Filter and delay.
All Si Compact consoles have buses and output processing to match the versatility of the inputs all aux/group, master and matrix buses feature a compressor, parametric EQ, graphic EQ and delay always available all of the time.
To complement the channel and bus processing all Si Compact consoles offer four Stereo Lexicon FX processors providing a wealth of sounds and user adjustable parameters alongside the 21 graphic EQs that`s a total of 25 processes that can all be used at the same time in addition to all the regular channel and bus processing.
Flexible onboard and expansion I/O options ensure the Si Compact integrates effortlessly with other system components; along with the 16 mic inputs there are two pairs of stereo analogue line in, AES in and out, 16 analogue line outputs, headphone monitor out and a 64x64 channel expansion card slot capable of utilising any of the Si series option cards that includes AES, AVIOM, CobraNet and MADI. The MADI card, as well as being an interface to multi-track recording systems enables linking the Si Compact to the Soundcraft/Studer stageboxes which extend the I/O power and flexibility but all this power is nothing without control and here lies the core strength of the Si Compact a comprehensive but `simple to use` control surface.
As you would expect from any Soundcraft digital mixer the facilities are extensive and include legendary audio quality courtesy of EMMA Lite, the same DSP platform that has helped propel the Si Series to industry standard status; this is united with all the reliability, show management, naming of channels, storing & naming cues and other features that you would expect, but what really sets Si Compact apart from all others is the simplicity of operation...
Key Features
- Use with Soundcraft ViSi Remote to roam your venue wirelessly adjusting mixes and other audio parameters directly from an iPad!
- DOGS (Direct Out Gain Stabiliser) - Enable to prevent manual change of a mic gain control affecting direct out levels, perfect when 2 consoles share a stagebox or when recording the channel direct outputs
- Security lockout ? lock the whole console or just select elements, manage the security with the users and profile settings.
- Assignable Fader Layers ? Customise each of the four fader layer pages to meet your needs or add/insert faders to accommodate that additional mic that was not in the patch list!
- Copy & Paste ? Copy whole channels, buses, mixes, Lexicon effects, a single part such as the EQ or multiple parts like the channel gate and compressor.
- Personal Monitoring Interface ? When used with the Si BLU link option card, the Si Compact is a perfect partner to the dbx PMC16 Personal Monitoring System , using simple Cat5 cabling for easy setup.
- TOTEM ? The One Touch Easy Mix; press a single key to mix to an AUX, FX or Matrix bus, the surface and monitoring instantly reconfigure to allow instant mixing to your chosen bus on the faders.
- BSS GEQ ? With a BSS GEQ on every bus there is never any need to assign from a pool of resources and you will never `run out` of processing.
- 1 Control = 1 Function ? With each control dedicated to a given function there is never any `layering` of controls or navigating through screens; this allows the Si Compact controls to be labeled on the surface just as they would have been on an analogue mixer.
- Global Mode Controls ? A row of rotary controls above each fader assignable at the touch of a button to be GAIN, PAN or HPF for all of the inputs allowing instant access to the core functions.
- Soundcraft FaderGlow ? Illuminates the fader slots according to function with clearly defined colours for FX, Stereo, Linked Mono, GEQ, POST Fade Aux, PRE Fade Aux; you`ll never be lost again!
- Instant Access Keys ? Dedicated keys on the front panel for STORE, RECALL, NEXT, MUTE 1-4, TAP TEMPO and more negate the need to dive into screen & context menus.
- Function Focus ? Whenever a control is moved or select key pressed the screen displays information about the channel identifying the absolute value of the controls and the channel name, number etc...
Features
- Compatible with Soundcraft ViSi Remote
- 16 mono inputs
- 4 stereo channels
- 14 sub-group / aux busses
- 4 FX busses
- 4 Matrix busses
- LRC Mix busses
- 4 Stereo Lexicon Effects engines
- Delay on inputs and outputs
- 4 Mute Groups
- AES in and out
- Harman HiQnet integration
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Used Soundcraft
Soundcraft is a British designer and importer (formerly a manufacturer) of mixing consoles and other professional audio equipment. It is a subsidiary of Harman International Industries, which is owned by South Korean company Samsung Electronics.
It was founded by sound engineer Phil Dudderidge and electronics designer Graham Blyth in 1973.
Soundcraft first made its mark by manufacturing the Series 1, the first mixing console built into a flight-case. It was available with 12 or 16 input channels and 4 main stereo outputs, plus a post-fader ‘echo’ send and pre-fader foldback. Each channel had four-band fixed-frequency EQ. The Series 1 also included a multi-pin connector that integrated with a multi-channel microphone snake to route signals from and to the stage from a mix position in the audience.
The Series 1S was introduced in 1975 as an upgraded Series 1. The Series 1S introduced the classic Soundcraft four-band EQ with two sweepable mid-range sections. In addition to The Series 1S added a second foldback send and was available in a 20 channel version.
In 1975, Soundcraft introduced the Series 2 console as a live and recording console. The Series 2 began to build Soundcraft's reputation for quality desks with the classic British sound. The Series 2 launched as a four-bus console, and was later available in an eight-bus version. It was initially offered in 12 and 16 channel versions, and a 24 channel version was later added.
The design used a semi-modular approach with individual channels in separate modules. The master section was made up of echo return, group output, cue master and monitoring modules. The input channels were available in fixed-frequency EQ standard channel and swept EQ versions. The swept EQ version also allowed switching between microphone input and line input, which was typically attached to a multi-track recorder output. All channels provided stereo pan as well as four cue send buses that could be configured as pre- or post-fader and allowed individual monitoring via a pre-fade listen (PFL) function. Each channel could be routed directly to the left–right mix bus or to odd/even pairs of sub-mix buses.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Efficiency Rating: Level of sound output measured at a prescribed distance with a standard input power. Efficiency rating standard is 1 watt (2.83V at 8 ohms) at 1 meter over a specified frequency range and is measured in decibels.
Equalization: Loosely, any type of relative frequency adjustment. Specifically, the process of changing the frequency balance of an electrical signal to alter the acoustical output.
Equalizer: A component designed to alter the frequency balance of an audio signal. Equalizers may be graphic, parametric, or a combination of both.
Fade: A gradual increase in audio, i.e. a fade-up, or a gradual decrease in audio, i.e. a fade-down.
Feedback: The transmission of current or voltage from the output of a device back to the input, where it interacts with the input signal to modify operation of the device. Feedback is positive when it’s in phase with the input and negative when it's out of phase.
FM: Frequency Modulated.
Frequency: The number of cycles (vibrations) per second. In audio, audible frequencies commonly range from 20 to 20,000 cycles per second (Hz). In video, frequency is used to define the image resolution. Low-frequency video images depict large objects or images. Higher frequencies depict smaller objects (finer details.
Frequency Response: A measure of what frequencies can be reproduced and how accurately they are reproduced. A measurement of 20 to 20,000 Hz, 3dB means those frequencies between 20 and 20,000 Hz can be reproduced no more than 3 dB above or below a reference frequency level.
Full-Range: A speaker designed to reproduce the full range (20 Hz to 20 kHz) of audio frequencies.
Gain: Increase in level or amplitude.
Gooseneck: This refers to a microphone with a flexible neck that is most frequently attached to a podium or lectern. It is designed to allow the speaker to raise or lower the microphone to a suitable height.
Graphic Equalizer: A type of equalizer with sliding controls that creates a pattern representing a graph of the frequency-response changes. Raising sliders boosts the affected frequencies lowering sliders cuts (attenuates) the affected frequencies.
HDCP: High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent unauthorized duplication of copyright material.
HDR: Hard-Drive Recorder. Device that uses a computer hard drive to store compressed digital audio and video signals.
High Pass: A filter that passes high frequencies, and attenuates low frequencies. Same as low cut.
Hz: Hertz or cycles per second. Something that repeats a cycle once each second moves at a rate of 1 Hz.
Incue/Inq/In-Point: These words all refer to the initial few seconds of audio signifying the beginning of the production.
Integrated Amplifier: A combination preamp and amplifier.
Impedance: A measure of the impediment to the flow of alternating current, measured in ohms at a given frequency. Larger numbers mean higher resistance to current flow.
KHz: Kilohertz or one thousand Hz.
Lavaliere: A small microphone that attaches to clothing, allowing the speaker to have a hands-free presentation.
Line Array: A group of speakers that have been arrayed or ” built up” in the vertical or horizontal plane, which allow for a highly consistent sound field. A Line Array is perfect for medium to large audiences.
Line-Level (Low-Level): A level of electrical signals too low to make the average speaker move sufficiently. Amplifiers receive line-level signals and amplify them to speaker level.
lockout: The final words of a segment used to signify the production’s conclusion.
Low Pass: A filter that lets low frequencies go through but doesn’t let high frequencies go through. Same as high cut.
MHz: Megahertz, or 1 million Hz.
Midbass: The middle of the bass part of the frequency range, from approximately 50 to 100 Hz (upper bass would be from 100 to 200 Hz). Also used as a term for loudspeaker drivers designed to reproduce both bass and midrange frequencies.
Midrange: The middle of the audio frequency range. Also used as a term for loudspeaker drivers designed to reproduce this range.
Mixer: This is the unit in which audio signals are directed from. A mixer provides for both mic and line input combinations while allowing you to control one or more outputs.
MLP: Meridian Lossless Packing. Encoding format that is able to completely reconstruct the original signal at the receiving end. No information is lost or discarded, regardless of how trivial it might be. Used to encode six channels of high-resolution audio on DVD-A.
Mono: Monophonic sound. One channel.
MP3: MPEG-1 Audio Layer-3. Compression scheme used to transfer audio files via the Internet and store in portable players and digital audio servers.
Natural Sound (NATS): The nonverbal audio that occurs in a non-studio setting. NATS can be used to help characterize the setting.
Noise: An unwanted portion of a signal such as hiss, hum, whine, static, or buzzing.
Nonlinear Editing: Digital audio systems that allow for clips to be extracted without affecting the master recording.
