TTL33-A MKII
Active 3-Way Line Array Module
The TTL33-A is a compact, wide dispersion, 3 way active line array module that offers the highest performance from a small size line array.
The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums.
Active Advantage
An active sound system means having the power amplifier on-board of the cabinet. This brings some advantages:
- Reduced setup time
- Daisy chain signal and power connection of the entire system or by groups
- No additional amplifier rack(s), saving space in the truck
- The sound quality and performance are optimized to the individual components inside the speaker
- The RDNet Networked Control can monitor each component of the system
State of the art Class-D amplifiers
The final amplifier section power capability provides extreme output bursts in a specific frequency range when needed. The power supply feeds 3 class-D amplifier sections: 500W+500W+250W (LF+MF+HF). Allowing up to 100 ms burst-signal handling thanks to the extra capacitor bus. The amplifier integrates a low noise 96 kHz, 32-bit floating point DSP circuit to compute FiRPHASE, soft clipping limiters, RMS limiters, polarity, amplitude, timing and equalization. All the control settings, monitoring of each component and other advanced features are RCF TT+integrated in the RDNet Networked Management software.
RCF Precision Transducers
Thanks to the in-house transducers design and manufacturing for no-compromise performances, the TTL 33-A is the best sounding medium format line source array from RCF. RCF PRECISION TRANSDUCERS Thanks to the in-house transducers design and manufacturing for no-compromise performances, the TTL 33-A is the best sounding medium format line source array from RCF.
- 2 x 8" low profile neodymium woofers in clam shell band-pass configuration
- 1 x 8" neodymium midrange in horn loaded configuration
- 3 x 1" neodymium compression driver, titanium dome, in horn-array configuration
- the total weight of the 8 transducers is less than 8 kg
Cabinet
The carefully engineered TTL33-A II cabinet packs the maximum output and superb sound quality in the minimum size possible. The electronics housing fits and seals the rear of the cabinet. Two recessed panels protect all the signal connectors. The water-resistant cabinet is the result of a careful treatment of the high-quality Baltic Birch plywood. The heavy-duty polyurea paint creates a very thick full coating making the cabinet highly resistant to scratches and bumps. The heavy duty front grille is powder coated. A special transparent-to-sound foam backing on the inside of the grille helps to further protect the transducers from dust.
High strength structural Swedish steel mechanics guarantees a yielding strength almost 4 times stronger compared to commercial grade steel and maintains the mechanical properties down to ?40° C. The rigging system features 8 splay angles, from 0° to 7° with 1° step increment.
Features
- 1250 W switching amplifiers
- wide, constant directivity, coverage angle
- 6 high power neodymium transducers
- High quality analog input board
- 96 kHz, 32 bit DSP processing
- Soft limiter and RMS protection
- Maximum output per size available on the market
- RDNet on board
Applications
- Theatrical sound reinforcement
- Portable and installed audio-visual systems
- Front and under-balcony fill
- Houses of worship, ballrooms, concert halls and other fixed venue installations
- High quality reinforcement of music and speech

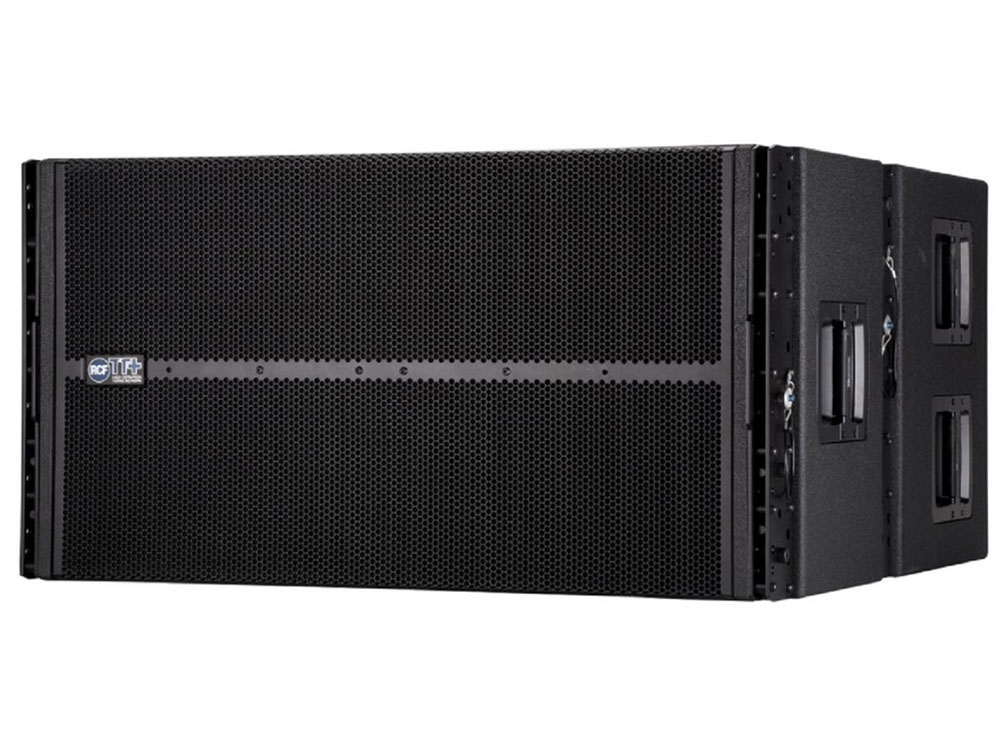

TTS36-A
The TTS36-A is a high power, high output active subwoofer system that sets a new standard in the touring sound reinforcement.
The new 18" neodymium design represents the result of many years dedicated in pioneering new solutions for the transducers technology. The integration of the 4000 Watt, 2 channels digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.
Features
- 4000 watt (2 x 2000 Watt digital amplifiers)
- 2 x 18" high power neodymium woofers, 4.5" v. c.
- 96 Khz, 32 bit DSP processing
- Remote monitoring and control
- Time delay alignment
- Bass reflex design, Cardioid preset for groups
- Tour grade cabinet
- RDNet on board
- Maximum output per size on market
Applications
- Touring sound reinforcement for large-sized venues
- Large-scale event reinforcement
- Stadiums, arenas, large events and concerts
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Used RCF
RCF S.p.A. is a widely recognized Italian manufacturer of high performance audio products including power amplifiers, loudspeakers, digital mixers and digital signal processors (DSP).
RCF is an Italian audio products manufacturer founded in 1949. The first products sold were microphones and electroacoustic transducers (loudspeakers).
In the late ’60, concert sound was going electric, and many loudspeaker pioneers were searching for high-powered devices to use in their designs.
RCF was one of the first European OEM suppliers for international brands, thanks to the experience built on high power transducers.
After few years, thanks to the in-depth know-how in loudspeaker technology, RCF begin to develop and produce sound reinforcement systems under the same brand.
The introduction of the ART Series, in 1996, has established RCF among the few global manufacturers of active loudspeakers.
The TT+ High Definition - Touring and Theater series equipped with DSP, introduced in 2004, and the RDNet Networked Management technology, let RCF a full recognition in the professional audio market.
Since 2017, all DSP active speakers incorporate FiRPHASE technology, which allows achieving a 0° linear phase playback.
RCF is the first audio manufacturer to have a complete catalogue of 0° phase-compatible sound systems including line arrays.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Efficiency Rating: Level of sound output measured at a prescribed distance with a standard input power. Efficiency rating standard is 1 watt (2.83V at 8 ohms) at 1 meter over a specified frequency range and is measured in decibels.
Equalization: Loosely, any type of relative frequency adjustment. Specifically, the process of changing the frequency balance of an electrical signal to alter the acoustical output.
Equalizer: A component designed to alter the frequency balance of an audio signal. Equalizers may be graphic, parametric, or a combination of both.
Fade: A gradual increase in audio, i.e. a fade-up, or a gradual decrease in audio, i.e. a fade-down.
Feedback: The transmission of current or voltage from the output of a device back to the input, where it interacts with the input signal to modify operation of the device. Feedback is positive when it’s in phase with the input and negative when it’s out of phase.
FM: Frequency Modulated.
Frequency: The number of cycles (vibrations) per second. In audio, audible frequencies commonly range from 20 to 20,000 cycles per second (Hz). In video, frequency is used to define the image resolution. Low-frequency video images depict large objects or images. Higher frequencies depict smaller objects (finer details.
Frequency Response: A measure of what frequencies can be reproduced and how accurately they are reproduced. A measurement of 20 to 20,000 Hz, 3dB means those frequencies between 20 and 20,000 Hz can be reproduced no more than 3 dB above or below a reference frequency level.
Full-Range: A speaker designed to reproduce the full range (20 Hz to 20 kHz) of audio frequencies.
Gain: Increase in level or amplitude.
Gooseneck: This refers to a microphone with a flexible neck that is most frequently attached to a podium or lectern. It is designed to allow the speaker to raise or lower the microphone to a suitable height.
Graphic Equalizer: A type of equalizer with sliding controls that creates a pattern representing a graph of the frequency-response changes. Raising sliders boosts the affected frequencies lowering sliders cuts (attenuates) the affected frequencies.
HDCP: High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent unauthorized duplication of copyright material.
HDR: Hard-Drive Recorder. Device that uses a computer hard drive to store compressed digital audio and video signals.
High Pass: A filter that passes high frequencies, and attenuates low frequencies. Same as low cut.
Hz: Hertz or cycles per second. Something that repeats a cycle once each second moves at a rate of 1 Hz.
Incue/Inq/In-Point: These words all refer to the initial few seconds of audio signifying the beginning of the production.
Integrated Amplifier: A combination preamp and amplifier.
Impedance: A measure of the impediment to the flow of alternating current, measured in ohms at a given frequency. Larger numbers mean higher resistance to current flow.
KHz: Kilohertz or one thousand Hz.
Lavaliere: A small microphone that attaches to clothing, allowing the speaker to have a hands-free presentation.
Line Array: A group of speakers that have been arrayed or "built up" in the vertical or horizontal plane, which allow for a highly consistent sound field. A Line Array is perfect for medium to large audiences.
Line-Level (Low-Level): A level of electrical signals too low to make the average speaker move sufficiently. Amplifiers receive line-level signals and amplify them to speaker level.
lockout: The final words of a segment used to signify the production’s conclusion.
Low Pass: A filter that lets low frequencies go through but doesn’t let high frequencies go through. Same as high cut.
MHz: Megahertz, or 1 million Hz.
Midbass: The middle of the bass part of the frequency range, from approximately 50 to 100 Hz (upper bass would be from 100 to 200 Hz). Also used as a term for loudspeaker drivers designed to reproduce both bass and midrange frequencies.
Midrange: The middle of the audio frequency range. Also used as a term for loudspeaker drivers designed to reproduce this range.
Mixer: This is the unit in which audio signals are directed from. A mixer provides for both mic and line input combinations while allowing you to control one or more outputs.
MLP: Meridian Lossless Packing. Encoding format that is able to completely reconstruct the original signal at the receiving end. No information is lost or discarded, regardless of how trivial it might be. Used to encode six channels of high-resolution audio on DVD-A.
Mono: Monophonic sound. One channel.
MP3: MPEG-1 Audio Layer-3. Compression scheme used to transfer audio files via the Internet and store in portable players and digital audio servers.
Natural Sound (NATS): The nonverbal audio that occurs in a non-studio setting. NATS can be used to help characterize the setting.
Noise: An unwanted portion of a signal such as hiss, hum, whine, static, or buzzing.
Nonlinear Editing: Digital audio systems that allow for clips to be extracted without affecting the master recording.
