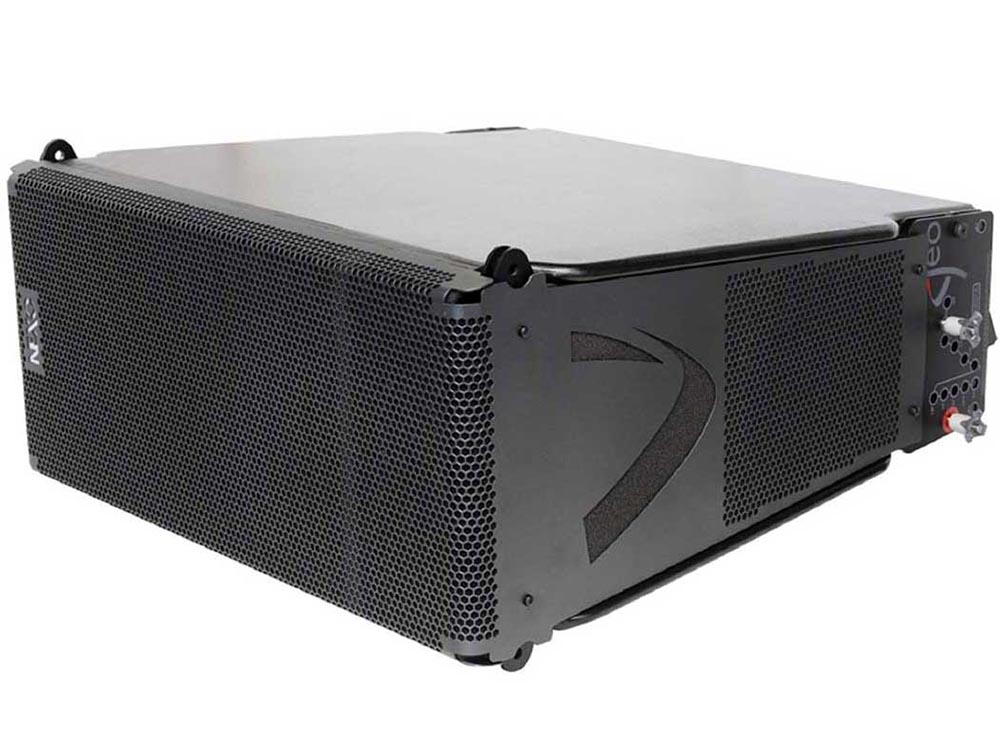

GEO D10
Efficient Large Array System Provides Directivity Control in All Frequencies
The GEO D System is the accomplishment of research and development for GEO systems by NEXO over the last 20 years. GEO D10`s 10° vertical dispersion allows a configuration with as little as 3 cabinets per side, offering excellent cost-effective performance to GEO technology. It also achieves a powerful low-frequency reproduction by combining up to 16 flown or ground-stacked GEO SUB cabinets. Even if it is flown, GEO SUB can control the directivity of LF and VLF (Very Low Frequency) at 38Hz to 300Hz (±3dB).
- Main module for GEO D System
- Up to 24 cabinets can be flown
- Recognizes an ideal line source with Hyperboloid Reflective Wavesource (HRW)
- Horizontal dispersion is switchable between 80° and 120°
- Directivity control of middle frequency by 2x side 8 inch driver
- 2x 6 pin Amphenol connector (EP6) for through output
- 10° trapezoidal cabinet efficiently covers near-fill

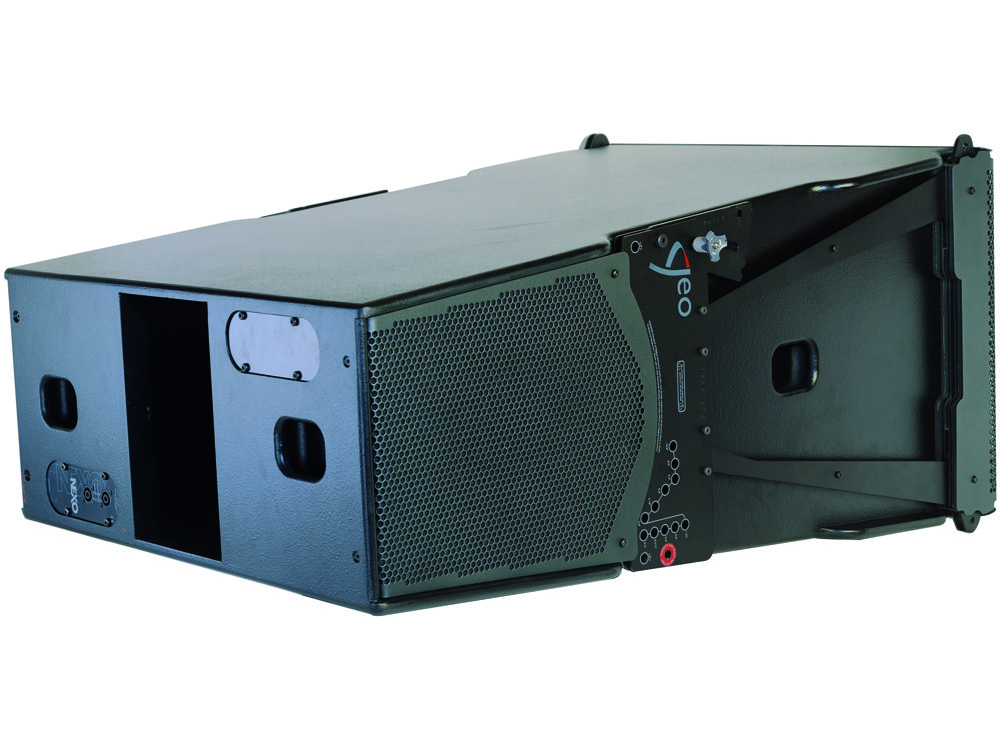

GEO SUB
The unconventional GEO SUB displays exceptional forward gain across three octaves eliminating many problems common to omni-directional LF. A high-efficiency, front loaded 18? driver delivers 140-143dB Peak SPL, while twin 12? side-firing transducers help create cardioid LF pattern control via precise rear pattern cancellation.

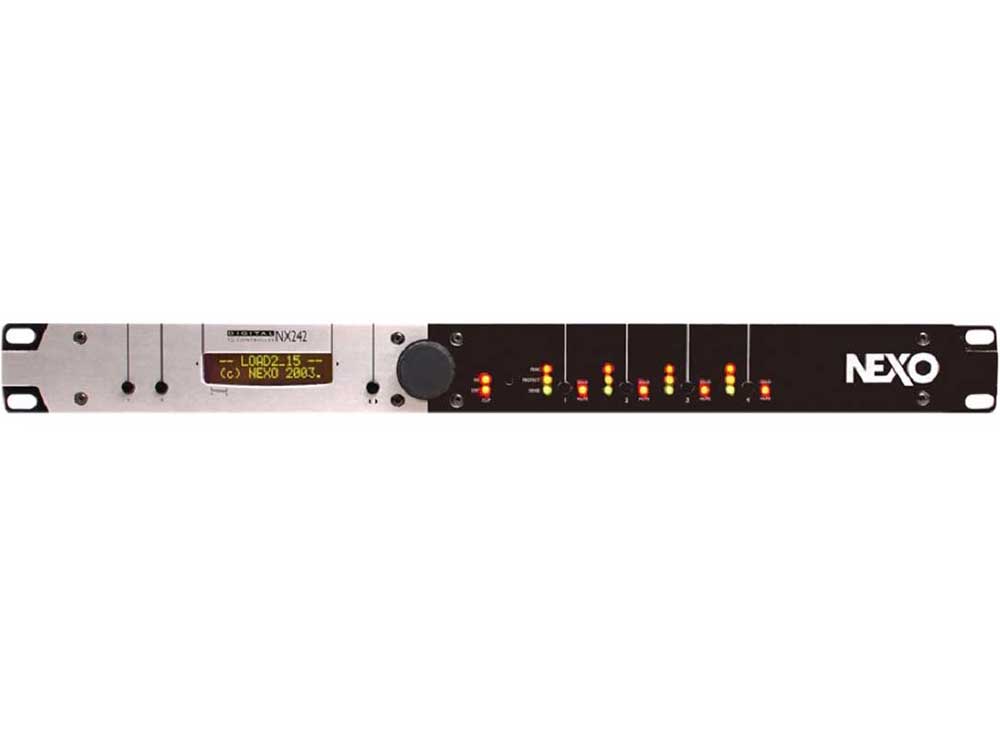

NX242 TDcontrollers, fitted with the required NXtension Expander Boards, employ advanced digital filter sets with new, proprietary algorithms, to optimize phase and extend GEO SUB?s cardioid LF control from midbass to subbass. The Over/Under GEOD-BUMPER allows as many as 16x GEO SUBs to be flown together and presents multiple stage-stackable options.
Advantages
- Advanced Cardioid Bass and SubBass module
- Optimized Front-to-Rear Phase Adjustment and Maximized LF and SubBass Efficiency
- Aerodynamic Profiled Vents with 20dB Vent Noise Reduction and improved Linearity at high SPL
- X-Over Mode from 75Hz to 150Hz when GEO SUBs are stacked. Overlap Mode up to 600Hz when GEO SUBs are flown with any GEO system
- Arrays with GEO D10 or flies independently as part of GEO S and GEO T Systems
- EtherSound (Network) Controllable
- Bottom-Line Engineering for Theatre to ArenaSized Fixed & Mobile Applications

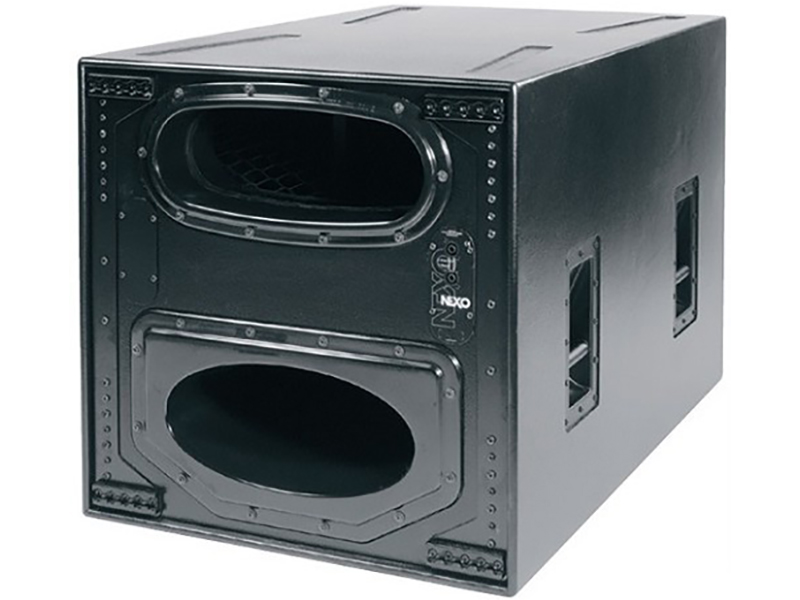

CD18
The CD18 uses an innovative approach to the control of long wavelength low frequency acoustic energy. Sophisticated signal processing algorithms, individually applied to each of the dual-ported 18 inch woofers, produce substantial forward gain and more than 12 dB attenuation at the rear. The CD18 puts subbass energy where it is needed and keeps it away from open microphones and reverberant surfaces.
The GEO T & S Series are the result of a three year intensive R&D project that has produced three fundamental patent applications in loudspeaker technology. The performance advantages produced by GEO innovations are easily measurable and clearly audible. With two full range tangent array modules and a hypercardioid subbass, the T Series offers total flexibility to design and deploy horizontal or vertical tangent arrays with coherent output. From high-definition musical reproduction to high output paging systems, GEO Technology delivers optimal performance in venues of all shapes and sizes.
- Unique directional subbass with cardioid or supercardioid pattern keeps subbass energy away from open microphones.
- 120° x 120° dispersion, usable output from 29 Hz to 180 Hz.
- Dual-ported 18 inch woofers fire in opposite directions and are driven in reverse polarity.
- Requires NX241 Digital TDController and two amplifier channels: each woofer is processed individually.
- Internally braced Baltic Birch cabinet minimizes in-band resonances.
- Available in structured black coating or dark grey carpet covering.
- Integrated flying system for use with curved vertical tangent arrays of GEO T Series modules.
- Cabinets designed for stable ground stacking.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Used NEXO
NEXO is a world leader in the design and manufacture of loudspeaker systems for sound reinforcement.Today, NEXO is a wholly-owned strategic business unit of Yamaha Corporation, a convergence of technological expertise that has resulted in such innovations as the NXAMP Series and 4×4 Powered TDControllers which provide full integration of speaker and amplifier control, and console management of PA systems over the latest and most popular digital networking protocols.
Through the application of convergence-inspired design, NEXO seeks not only to enhance the audience experience through the development of increasingly more transparent and consistently controllable sound systems, but also to serve the wider public through the improved directivity of its systems.
NEXO is wholly focussed on serving the environment, through the adoption of more sustainable and less polluting manufacturing processes, and through the development of systems that are ever more compact, easier to transport and less demanding to set up.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Efficiency Rating: Level of sound output measured at a prescribed distance with a standard input power. Efficiency rating standard is 1 watt (2.83V at 8 ohms) at 1 meter over a specified frequency range and is measured in decibels.
Equalization: Loosely, any type of relative frequency adjustment. Specifically, the process of changing the frequency balance of an electrical signal to alter the acoustical output.
Equalizer: A component designed to alter the frequency balance of an audio signal. Equalizers may be graphic, parametric, or a combination of both.
Fade: A gradual increase in audio, i.e. a fade-up, or a gradual decrease in audio, i.e. a fade-down.
Feedback: The transmission of current or voltage from the output of a device back to the input, where it interacts with the input signal to modify operation of the device. Feedback is positive when it’s in phase with the input and negative when it’s out of phase.
FM: Frequency Modulated.
Frequency: The number of cycles (vibrations) per second. In audio, audible frequencies commonly range from 20 to 20,000 cycles per second (Hz). In video, frequency is used to define the image resolution. Low-frequency video images depict large objects or images. Higher frequencies depict smaller objects (finer details.
Frequency Response: A measure of what frequencies can be reproduced and how accurately they are reproduced. A measurement of 20 to 20,000 Hz, 3dB means those frequencies between 20 and 20,000 Hz can be reproduced no more than 3 dB above or below a reference frequency level.
Full-Range: A speaker designed to reproduce the full range (20 Hz to 20 kHz) of audio frequencies.
Gain: Increase in level or amplitude.
Gooseneck: This refers to a microphone with a flexible neck that is most frequently attached to a podium or lectern. It is designed to allow the speaker to raise or lower the microphone to a suitable height.
Graphic Equalizer: A type of equalizer with sliding controls that creates a pattern representing a graph of the frequency-response changes. Raising sliders boosts the affected frequencies lowering sliders cuts (attenuates) the affected frequencies.
HDCP: High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent unauthorized duplication of copyright material.
HDR: Hard-Drive Recorder. Device that uses a computer hard drive to store compressed digital audio and video signals.
High Pass: A filter that passes high frequencies, and attenuates low frequencies. Same as low cut.
Hz: Hertz or cycles per second. Something that repeats a cycle once each second moves at a rate of 1 Hz.
Incue/Inq/In-Point: These words all refer to the initial few seconds of audio signifying the beginning of the production.
Integrated Amplifier: A combination preamp and amplifier.
Impedance: A measure of the impediment to the flow of alternating current, measured in ohms at a given frequency. Larger numbers mean higher resistance to current flow.
KHz: Kilohertz or one thousand Hz.
Lavaliere: A small microphone that attaches to clothing, allowing the speaker to have a hands-free presentation.
Line Array: A group of speakers that have been arrayed or "built up" in the vertical or horizontal plane, which allow for a highly consistent sound field. A Line Array is perfect for medium to large audiences.
Line-Level (Low-Level): A level of electrical signals too low to make the average speaker move sufficiently. Amplifiers receive line-level signals and amplify them to speaker level.
lockout: The final words of a segment used to signify the production’s conclusion.
Low Pass: A filter that lets low frequencies go through but doesn’t let high frequencies go through. Same as high cut.
MHz: Megahertz, or 1 million Hz.
Midbass: The middle of the bass part of the frequency range, from approximately 50 to 100 Hz (upper bass would be from 100 to 200 Hz). Also used as a term for loudspeaker drivers designed to reproduce both bass and midrange frequencies.
Midrange: The middle of the audio frequency range. Also used as a term for loudspeaker drivers designed to reproduce this range.
Mixer: This is the unit in which audio signals are directed from. A mixer provides for both mic and line input combinations while allowing you to control one or more outputs.
MLP: Meridian Lossless Packing. Encoding format that is able to completely reconstruct the original signal at the receiving end. No information is lost or discarded, regardless of how trivial it might be. Used to encode six channels of high-resolution audio on DVD-A.
Mono: Monophonic sound. One channel.
MP3: MPEG-1 Audio Layer-3. Compression scheme used to transfer audio files via the Internet and store in portable players and digital audio servers.
Natural Sound (NATS): The nonverbal audio that occurs in a non-studio setting. NATS can be used to help characterize the setting.
Noise: An unwanted portion of a signal such as hiss, hum, whine, static, or buzzing.
Nonlinear Editing: Digital audio systems that allow for clips to be extracted without affecting the master recording.
