Used, Second hand Meyer Sound UMS-1P Ultra-Compact Dual 10

ABOUT THE PRODUCT ABOUT THE MANUFACTURER GLOSSARY

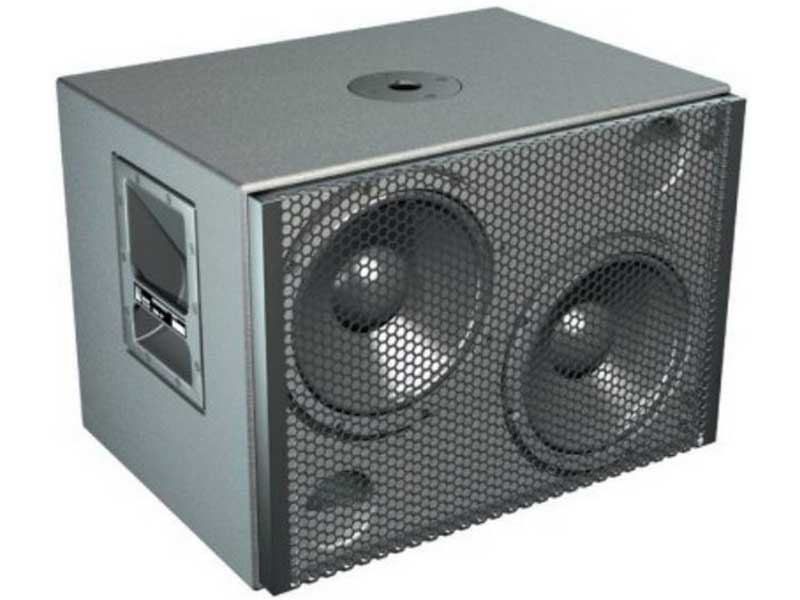

UMS-1P : Ultra-Compact Subwoofer

An extremely compact, self-powered system, the UMS-1P ultracompact subwoofer provides powerful low-frequency extension in applications where both excellent audio quality and an unobtrusive cabinet size are required. The system’s output is 123 dB linear peak SPL within its operating range of 25–160 Hz. Although designed primarily as a companion for Meyer Sound’s UPM-1P wide coverage and UPM-2P narrow coverage ultracompact loudspeakers, the UMS-1P is equally adaptable for use with other Meyer Sound models, such as the HD-1 high-definition studio monitor. The UMS-1P may be used singly or stacked to provide even greater low-frequency output.
The tuned bass-reflex enclosure houses two 10 in cone drivers, each powered by a dedicated channel of an integral class AB/bridged power amplifier with complementary MOSFET output stages. Total peak power is 800 watts. Each channel incorporates a limiter that prevents driver over-excursion and regulates the voice coil temperature. A smooth limiting characteristic effectively protects the drivers without the compression effects imposed by typical limiters, allowing high output levels across the drivers’ entire frequency range.
The internal electronics also provide active signal processing, including phase correction circuitry that delivers flat frequency and phase response over the entire operating range. Integrating a built-in low-pass crossover while accepting a full-range signal, the UMS-1P’s input allows for simple daisy-chain signal distribution and eliminates the need for external crossovers.
Field-replaceable audio input modules accommodate a range of applications. The standard version offers looping XLR input and output connectors, while an enhanced looping version adds polarity switching (the looping output is not affected) and input attenuation (0–18 dB). A mono summing version with two inputs is also available.
The standard UMS-1P is switchable between the 115 V AC and 230 V AC ranges. A 100 V AC version is also available. The integral power supply suppresses high-voltage transients and also provides EMI filtering. Dual locking PowerCon connectors facilitate AC looping.
Meyer Sound constructs the UMS-1P’s durable enclosure from premium multi-ply birch, covers it with a slightly textured black finish, and includes a powder-coated, hex-stamped steel grille with black mesh cover. A pole mount for supporting a UPM-1P or UPM-2P is fitted as standard. An optional variant, the UMS-SM, ships with nut plates instead of handles and includes a U-bracket for applications requiring individual mounting. Other options include custom color finishes for applications requiring specific cosmetics.
The UMS-1P is compatible with the RMS remote monitoring system, which offers comprehensive monitoring of loudspeaker parameters from a Mac or Windows-based computer running Compass control software.

Features

Powerful, extended low-frequency response in a very compact cabinet
Linear driver excursion ensures exceptionally clean bass response with very low distortion
Extend or supplement low frequency output of UPM and HD-1 systems
Flat, phase-corrected response ensures maximum fidelity

applications

Mix suites
Small theatre and audio-visual
Houses of worship

Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used Meyer Sound Laboratories

Meyer Sound Laboratories is an American company based in Berkeley, California that manufactures self-powered loudspeakers, multichannel audio show control systems, electroacoustic architecture, and audio analysis tools for the professional sound reinforcement, fixed installation, and sound recording industries.
The company’s emphasis on research and measurement has resulted in the issuance of dozens of patents, including for the now-standard trapezoidal loudspeaker cabinet shape. Meyer Sound has pioneered other technologies that have become standard in the audio industry, including: processor-controlled loudspeaker systems, self-powered loudspeakers,curvilinear arraying, cardioid subwoofers, and source independent measurement.
Meyer Sound has consistently involved itself with advanced research beyond that connected to immediate product development, sometimes in conjunction with arms of the University of California, Berkeley. Some of this research has resulted in unusual products such as their parabolic sound beam and sound field synthesis loudspeakers. Other projects, such as the spherical loudspeaker research underway by Meyer Sound and CNMAT (Center for New Music and Audio Technologies) at UC Berkeley are still in the stage of pure research.

Efficiency Rating: Level of sound output measured at a prescribed distance with a standard input power. Efficiency rating standard is 1 watt (2.83V at 8 ohms) at 1 meter over a specified frequency range and is measured in decibels.

Equalization: Loosely, any type of relative frequency adjustment. Specifically, the process of changing the frequency balance of an electrical signal to alter the acoustical output.

Equalizer: A component designed to alter the frequency balance of an audio signal. Equalizers may be graphic, parametric, or a combination of both.

Fade: A gradual increase in audio, i.e. a fade-up, or a gradual decrease in audio, i.e. a fade-down.

Feedback: The transmission of current or voltage from the output of a device back to the input, where it interacts with the input signal to modify operation of the device. Feedback is positive when it’s in phase with the input and negative when it’s out of phase.

FM: Frequency Modulated.

Frequency: The number of cycles (vibrations) per second. In audio, audible frequencies commonly range from 20 to 20,000 cycles per second (Hz). In video, frequency is used to define the image resolution. Low-frequency video images depict large objects or images. Higher frequencies depict smaller objects (finer details.

Frequency Response: A measure of what frequencies can be reproduced and how accurately they are reproduced. A measurement of 20 to 20,000 Hz, 3dB means those frequencies between 20 and 20,000 Hz can be reproduced no more than 3 dB above or below a reference frequency level.

Full-Range: A speaker designed to reproduce the full range (20 Hz to 20 kHz) of audio frequencies.

Gain: Increase in level or amplitude.

Gooseneck: This refers to a microphone with a flexible neck that is most frequently attached to a podium or lectern. It is designed to allow the speaker to raise or lower the microphone to a suitable height.

Graphic Equalizer: A type of equalizer with sliding controls that creates a pattern representing a graph of the frequency-response changes. Raising sliders boosts the affected frequencies lowering sliders cuts (attenuates) the affected frequencies.

HDCP: High-Bandwidth Digital Content Protection. Created by Intel, HDCP is used with HDTV signals over DVI and HDMI connections and on D-Theater D-VHS recordings to prevent unauthorized duplication of copyright material.

HDR: Hard-Drive Recorder. Device that uses a computer hard drive to store compressed digital audio and video signals.

High Pass: A filter that passes high frequencies, and attenuates low frequencies. Same as low cut.

Hz: Hertz or cycles per second. Something that repeats a cycle once each second moves at a rate of 1 Hz.

Incue/Inq/In-Point: These words all refer to the initial few seconds of audio signifying the beginning of the production.

Integrated Amplifier: A combination preamp and amplifier.

Impedance: A measure of the impediment to the flow of alternating current, measured in ohms at a given frequency. Larger numbers mean higher resistance to current flow.

KHz: Kilohertz or one thousand Hz.

Lavaliere: A small microphone that attaches to clothing, allowing the speaker to have a hands-free presentation.

Line Array: A group of speakers that have been arrayed or "built up" in the vertical or horizontal plane, which allow for a highly consistent sound field. A Line Array is perfect for medium to large audiences.

Line-Level (Low-Level): A level of electrical signals too low to make the average speaker move sufficiently. Amplifiers receive line-level signals and amplify them to speaker level.

lockout: The final words of a segment used to signify the production’s conclusion.

Low Pass: A filter that lets low frequencies go through but doesn’t let high frequencies go through. Same as high cut.

MHz: Megahertz, or 1 million Hz.

Midbass: The middle of the bass part of the frequency range, from approximately 50 to 100 Hz (upper bass would be from 100 to 200 Hz). Also used as a term for loudspeaker drivers designed to reproduce both bass and midrange frequencies.

Midrange: The middle of the audio frequency range. Also used as a term for loudspeaker drivers designed to reproduce this range.

Mixer: This is the unit in which audio signals are directed from. A mixer provides for both mic and line input combinations while allowing you to control one or more outputs.

MLP: Meridian Lossless Packing. Encoding format that is able to completely reconstruct the original signal at the receiving end. No information is lost or discarded, regardless of how trivial it might be. Used to encode six channels of high-resolution audio on DVD-A.

Mono: Monophonic sound. One channel.

MP3: MPEG-1 Audio Layer-3. Compression scheme used to transfer audio files via the Internet and store in portable players and digital audio servers.

Natural Sound (NATS): The nonverbal audio that occurs in a non-studio setting. NATS can be used to help characterize the setting.

Noise: An unwanted portion of a signal such as hiss, hum, whine, static, or buzzing.

Nonlinear Editing: Digital audio systems that allow for clips to be extracted without affecting the master recording.
