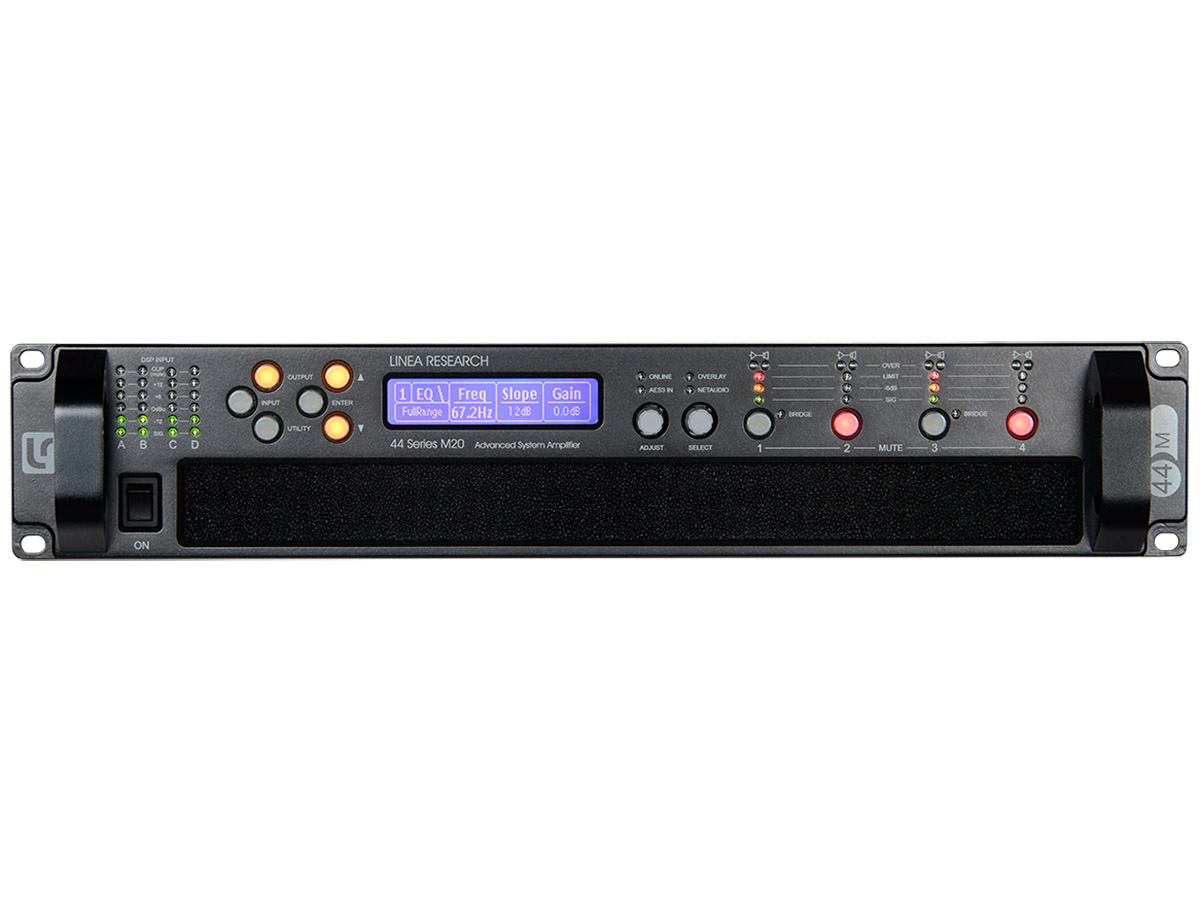

44M Series Amplifiers
Offering a unique combination of power and audio performance, seamlessly combined with advanced DSP and network control, the 44M Series range of four channel amplifiers is available in models developing between 1,500 Watts and 5,000 Watts per channel.
Over designed high capacity power supplies ensure the full power specification can be delivered into 2 ohms with all channels driven while remaining highly efficient.
Linea’s 44M Series of four channel amplifiers are optimised for live sound applications. Offering a unique combination of massive power and peerless audio performance integrated with unique DSP, the 44M Series represents an unmatched advancement in amplifier technology.
Sharing the same feature set and form factor as Linea's 48M Series of eight channel amplifiers the 44M Series is available in models that develop between 1,500Watts and 5,000 Watts per channel (up to 10,000 Watts for a bridged pair). Unusually these are not, ‘transient’, ‘burst’ or ‘peak’ power figures, they are the power levels that are delivered by all channels simultaneously even when driven with the same dense program material.
With Linea amplifiers there is no need to ration power between channels, you can use all the power you have paid for all the time. This has been independently verified.
Linea can do this because state of the art components and a finely optimised design results in an amplifier that is between 7% and 10% more efficient than any competitive product. This efficiency gain directly translates into the generation of about half the wasted energy (heat) which is clearly significant. In addition to reducing energy costs high efficiency results in generous power reserves ensuring that pristine sound quality is maintained even under the most extreme conditions.
Uniquely, each channel can be configured to deliver its maximum power into 2, 4 or 8 Ohms (2 or 4 Ohms for the M20 model), nominal loads as well as 25V, 70V & 100V constant Voltage (CV) lines. This offers designers and integrators unparalleled flexibility and cost effectiveness.
Ethernet is used for remote control and monitoring while a front panel, optimised for use in challenging live environments, allows full local control of all features. Control via Linea’s intuitive SE System Engineer PC application provides many convenient and time saving features such as very flexible management of presets, and Overlay grouping of Mutes, Gains, Delays, and EQ across an entire system.
The advanced 96kHz DSP is fully integrated into the product and provides an array of unique and genuinely useful features. Because all aspects of the DSP algorithms are designed and hand crafted in house by Linea, they are not available on products from any other manufacturer. For example, LIR linear phase crossover filters which are as easy to use as more conventional filter shapes, and have less latency than FIR filters. Also, the powerful VX Limiter suite which sports Peak, RMS, and Excursion limiting, as well as multi-band limiting for passive 2-way enclosures.
Features
- Four channels of sonically pure Class D amplification
- Unique, precise, 96kHz digital signal processing
- Over-designed switch mode power supply
- 85V to 240V Auto-sensing PSU
- 6,000 to 20,000 watts RMS total output
- Full front panel user interface
- Ethernet network for system operation and monitoring
- Analogue, AES3 and optional Dante™ / AES67 digital network audio
- Powerful grouping & multi-layer EQ
- Accepts 48kHz and 96kHz FIR files via System Engineer (certain models)
- Fully designed and engineered in house by Linea Research
- Manufactured in the UK
General Specifications
- Number of channels: Four
- Total power output, all channels driven" 20,000, 10,000, and 6,000 Watts RMS
- Audio inputs: 4x Analogue, 2x AES3 and 4x Dante™ / AES67 (factory fitted option)
- Digital Signal Processing: High performance DSP processing on all inputs and outputs
-
Control, monitoring and system status alarms:
- Ethernet network
- Volt-free relay and contact closure port
-
Power-save modes:
- Standby after user defined time, instant wake up on audio
- Deep ECO sleep after user defined time, wake up on command
- System sleep and wakeup Front panel switch, network command, and audio detection
