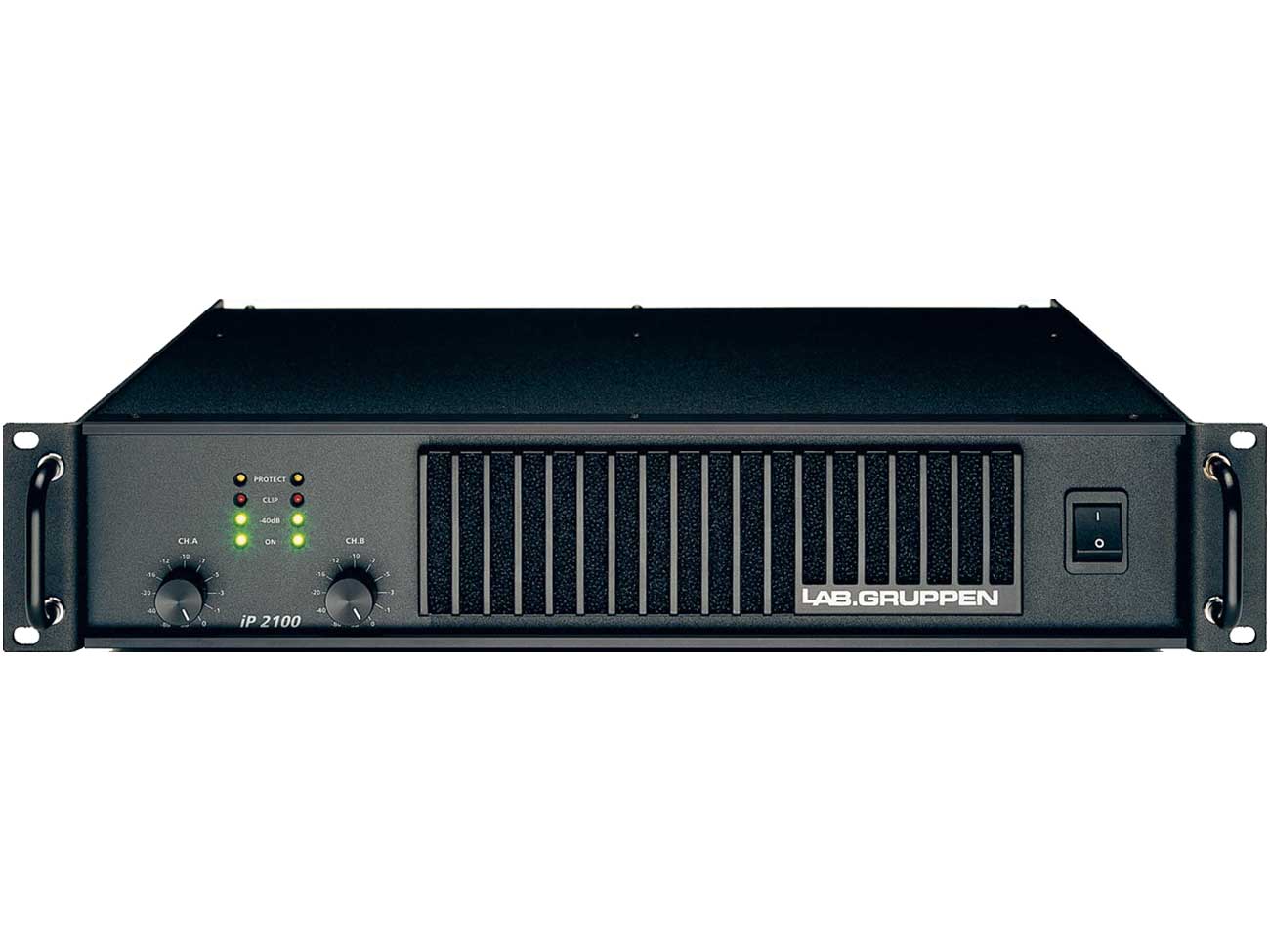

IP 2100
The iP 2100 is a space-saving power amplifier, ideal for use in installations as well as in cost-effective live sound systems.
The Iron Power (iP) family of power amplifiers is the new compact and versatile line ofprofessional power amplifiers with classic toroidal iron transformers. To achieve a compactdesign, the latest semiconductor technology is utilized.
This, together with Lab.gruppen's proprietary copper cooling system, Intercooler, enhances the 2 ohms capacity. A newBi-phase wiring scheme also increases the capacity of the power supply. This extends the power bandwidth in the low end.
Besides the traditionally superb Lab.gruppen sonic performance, there is a full line of features to make the iP family functional in all situations from installation to cost-effective live sound systems:
Multiple positions Gain switch
To meet the demands for a flexible gain structure in the system, Lab.gruppen offers a multiple position gain switch. The maximum amplifier gain can be set to all industry standards: 20, 23, 26, 29, 32, 35, 38 and 41 dB.
Versatile input connection
With the Neutrik Combo-jack we offer both the professional XLR-type standard and the semi-pro 1/4" TRS phono-jacks. For installations the 3-pin Phoenix terminal block may be handier.
Soft Start
Toroidal transformers require a huge amount of start current to build up a magnetic flux when theamplifier is switched on. Therefore Lab.gruppen have included a soft start circuit to minimize therisk of blowing the wall fuse and to reduce flickering in the lighting.
Sophisticated protection circuitry, combining:
ALStm short circuit protection: the Adaptive Limiting System permits very high peak currents, but keeps the amplifier within the Safe Operation Area.
DC protection: protects against infrasonic signals
VHF protection: protects the loudspeakers against strong very high frequency non-musical signals above the audible range.
Thermal protection: prevents the amplifier from being overheated. The protection indicators on the front panel are switched on, as a warning, before the protection process is initiated.
AC protection: shuts down the power supply if the line voltage is outside the operating voltage.
Clip limiter: prevents severely clipped waveforms from reaching the loudspeakers, whilst maintaining full peak power.
Key Features
- 2 x 425 watts at 8Ω
- 2 x 700 watts at 4Ω
- 2 x 1050 watts at 2Ω
- (Measured just below clip level, with both channels driven)
- Compact design: 2U high
- Intercooler? cooling system with front-to-rear airflow
- Multiple positions gain switch
- Easily accessible dust filter
- Improved low-end power bandwidth
- Neutrik Combo jack and Phoenix terminal block input connectors
- Bridged mono outputs in one SpeakOn connector
