LA24A

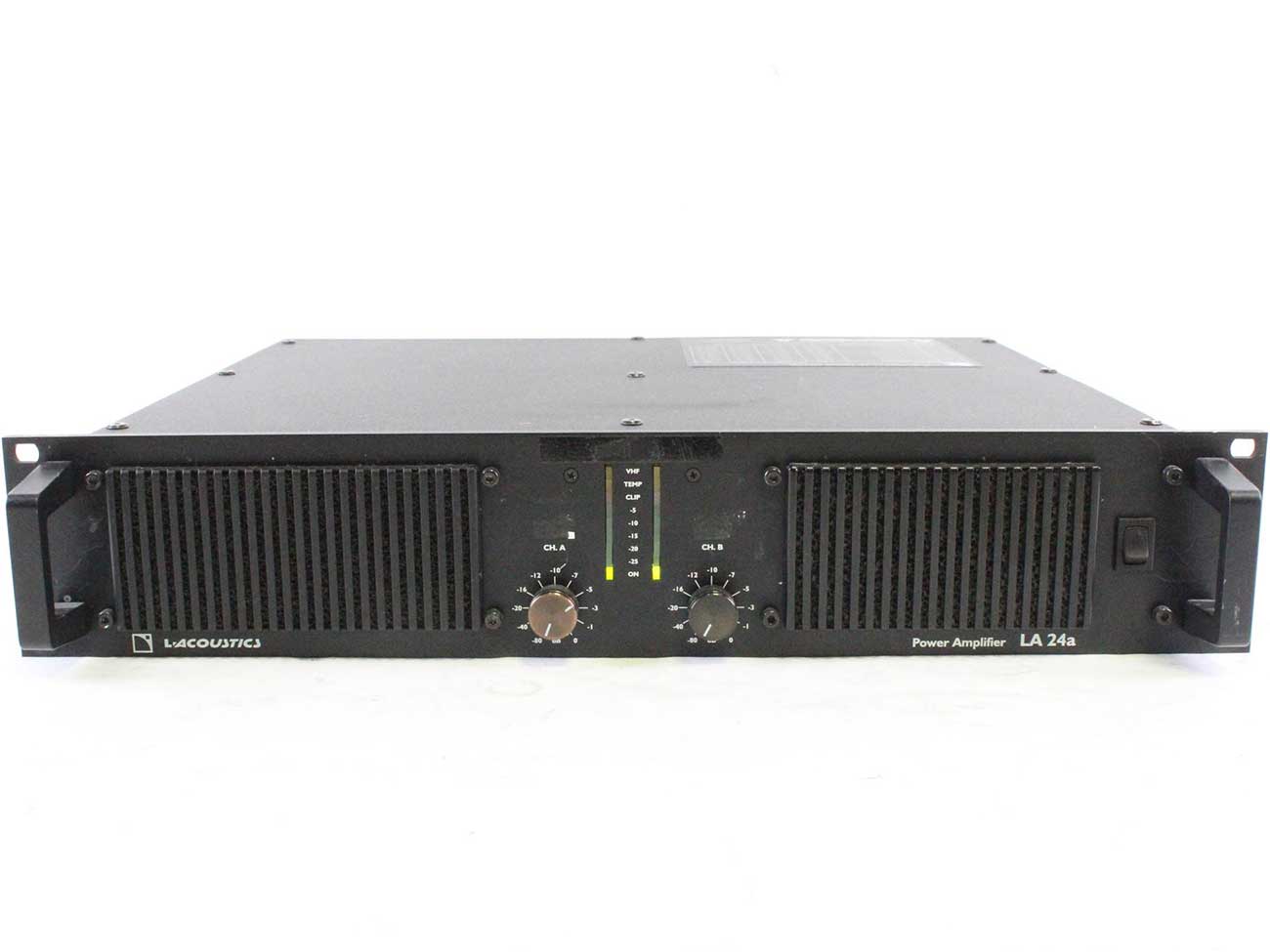

The LA24a is a compact, light-weight power amplifier (2 rack units high, 10 kg) designed for high performance touring and fixed installation. Capable of delivering over 1700 watts per channel into 2 ohms, the LA24a can also be configured to match the power delivered to a wide range of impedance loads using Minimum Load select (MLS) switches. MLS flexibility allows the LA24a to be customized to suit a variety of L-ACOUSTICS loudspeaker models and applications.
The switch-mode power supply (SMPS) employed in the LA24a is a modern solution to the weight and size problem. With SMPS technology, it is possible to use ferrite transformers instead of the heavy iron transformers and large electrolytic capacitors that are typical of conventional power amplifiers. Combined with the patented Intercooler system, this results in a weight reduction of up to 60% when compared with conventional amplifiers of similar power ratings.
Earlier attempts at using SMPS technology for audio were less than impressive since they directly adopted the type of supply found in many computers today. The LA24a is different since a regulated SMPS has been implemented using push pull conversion without current limiting on the secondary side of the switching transformer. Instead, sense windings inject a magnetic pulse from the AC line during a pulse time segment which is separate from the output charge current pulse. The net result is a power supply with performance characteristics that are the same as a conventional power supply and capable of delivering high peak power, tight bass and detailed transient response.
Using SMPS technology it is also easy to stabilize the DC-rail voltage allowing the LA24a to deliver full power over a range of up to 20% supply voltage swings and at any AC mains frequency from DC to 400 Hz. This stabilization is obtained by controlling the magnetic energy in the ferrite transformer with pulse width processing and magnetic flux sense windings.
The power transistors in the LA24a are cooled by a patented solid copper heatsink, termed the Intercooler. Bipolar output devices are directly mounted onto the Intercooler for improved heat transfer. The heat sink is then mounted horizontally in front of a pressure chamber that is created by two variable speed cooling fans. Specially designed thermal feedback circuitry protects against thermal breakdown and advanced linear active filtering is employed to reduce carrier noise and distortion in accordance with the strictest of EMC and RFI standards.
In terms of protection, the LA24a is completely short-circuit protected (even for reactive loads) and specially designed short-circuit protection circuitry allows very high peak currents while still holding the transistors within their "Safe Operating Area". This makes it possible to run loudspeakers with impedance variations which are considerably lower than the rated impedance of the power amplifier. Six more protection circuits protect the LA24a and the loudspeakers:

DC Protection: Two types of D.C. protection - fuses on the supply branches of each channel (IEC 65 requirement) and crowbar type protection that shorts the output.
Thermal Protection: Protects the amplifier from overheating and causing damage to the output stages. The indicators come on before the signal is muted.
Clip Limiter: Prevents severely clipped waveforms from reaching the loudspeakers while maintaining full peak power.
VHF (Very High Frequency) Protection: Protects the loudspeaker against non-musical signals outside the audible frequency range.
AC Protection: Shuts down the outputs if the line voltage is outside the operating voltage range of the LA24a.

Features

Power 16 ohms: 2 x 500W RMS
Power 8 ohms: 2 x 1100W RMS
Power 4 ohms: 2 x 1450W RMS
Power 2 ohms: 2 x 1650W RMS
Power Bridge 16 ohms 1 x 2000W RMS
Power Bridge 8 ohms 1 x 2900W RMS
Power Bridge 4 ohms 1 x 3300W RMS
Input Sensitivity: 20dB, 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB
Frequency response: 20Hz to 20KHz
Signal / noise ratio: <110dB
Crosstalk: 70dB
Indicators: LED Power, LED AFS, led clips on each channel LED heat on each channel, led VHF (high frequency) on each channel, VU-meters-25dB,-20dB,-15dB,-10dB,-5dB in each channel
Dimensions (L x W x D): 483 (19 ") x 88 (2U) x 347mm
Weight: 10 Kg
