ViRAY
Compact 3-way Symmetrical Line Array System, Unique 8 coaxial mid/high planar wave driver, Dual 8" neodymium ultra low distortion cone drivers
The ViRAY is a compact 3-way symmetrical line array module, designed for small to medium venues where high fidelity sound and outstanding intelligibility is required.
Aimed specifically at medium sized tours and fixed installation, ViRAY compact line array systems have been created to truly deliver the best possible audio quality, fulfilling the exacting needs of today's global markets and surpass the expectations of both user and listener.
ViRAY systems incorporate CODA's most advanced technologies; including the DDP-driver (Dual Diaphragm Planar-wave-driver), the unique ViCOUPLER and the award winning sensor controlled subwoofer technology.
ViRAY compact line array systems consist of the ViRAY 3-way symmetrical line array module, the SCV-F sensor controlled 18'' subwoofer and the dedicated LINUS amplifier racks.
ViRAY compact line array systems are perfectly suited for theatres, live sound performance venues, Clubs, Houses of Worship, Corporate events and Touring. The integrated rigging system allows quick and easy flying or ground stacking. Arrays may be created either straight or curved at various angles to obtain the desired vertical coverage.
The CODA EASE Focus 3 simulation software allows you to calculate the perfect setup for every application.
For special applications and to further enhance the audio experience, ViRAY systems can be extended with the SCP sensor controlled double 18'' subwoofer as a complementing tool.
Main Features
- Unique 8'' coaxial mid/high planar wave driver
- Dual 8'' neodymium ultra low distortion cone drivers
- ViCOUPLER unites all transducers to perfom as a single source
- High power handling of 600 W
- Variable horizontal coverage of 120° or 80° or 100° asymmetrical (40°+60°)
- Vertical curving 0° to 10° variable in 1° steps
- Superior sound
- Integrated rigging system for flown or ground stacked arrays
- Multiplex enclosure with Polyurea coating for extreme durability and water protection
- Subwoofer extension with the SCV-F
- System integration with LINUS RACKs

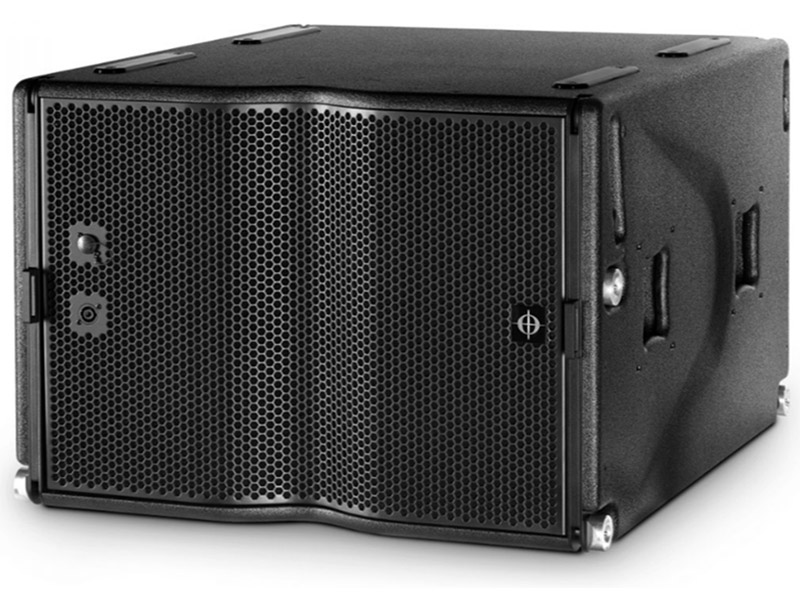

SC2-F : Sensor Controlled Bass Extension
Compact 2x 15? sensor controlled bass extension, Extended frequency range 35 - 200 Hz (-6 dB)
The SC2-F is NOT a subwoofer, it is a sensor controlled bass extension system operating in the range 35 - 200 Hz which overlaps both the low range of ViRAY and the SCV/SCP subwoofers providing essential more energy and control in the lower range of the system.
The SC2-F is NOT a subwoofer, it is a sensor controlled bass extension system operating in the range 35 - 200 Hz which overlaps both the low range of ViRAY and the SCV/SCP subwoofers providing essential more energy and control in the lower range of the system. Incorporating dual 15-inch drivers in a compact, vented enclosure it provides a distinctive 15-inch signature punch to the system.
The drivers contain an integrated velocity sensor that measures the diaphragm movement in real time, compares it with the input audio signal and adjusts the amplifier driving voltage and/or current, correcting any driver inaccuracy. It is a self-optimising, closed feedback-loop in which the driver confirms precisely the power it needs to accurately reproduce the original audio signal. The key advantage is a very extended and controlled response. Any distortion produced by the driver or the enclosure is instantly corrected by the feedback. Sensor controlled technology surpasses conventional subwoofer designs by offering measurable and clearly audible advantages in the impulse response, group delay, waterfall and the distortion domain. The reduced group delay results in extremely accurate and musical bass reproduction. The sound quality is far in advance of conventional port loaded systems.
The SC2-F is equipped with two extremely long excursion 15-inch neodymium ultra low distortion drivers with integrated velocity sensor that measures, compares and controls cone movements. The neodymium motor delivers extreme high magnetic flux for increased efficiency. The 4-inch voice coil is 36 mm high, ensuring ultra linear excursion of 26 mm / pp at consistent magnetic force. State-of-the-art carbon fiber cones ensure maximum stiffness and low moving mass. Three aluminum shorting rings reduce inter-modulation distortion, minimizing induction variation whilst reducing thermal compression. This design reduces dramatically the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet. The sensor is in fact an additional voice coil connected to the loudspeakers voice coil in a high precision, magnetically shielded system.
The SC2-F is designed to work exclusively with dedicated CODA Audio amplifier racks as an integrated solution for DSP and sensor control, amplification, network remote control and diagnostic.The integrated solution ensures optimal performance and protection.
Main Features
- Increases the long throw capability of ViRAY
- Enhances the systems low frequency headroom
- Overlaps both the low range of ViRAY and the SCV-F / SCP subwoofers reducing the need for additional subs
- Provides 15'' sonic signature
- Compact 2x 15'' sensor controlled bass extension
- Extended frequency range 35 ? 200 Hz (-6 dB)
- The feedback loop control ensures extreme fast transient response and ultra low distortion
- Flyable or ground stackable in cardio or omni configurations
- Rigging is compatible to ViRAY and SCV-F
- SC2-F arrays can be curved for perfect time alignment with ViRAY
- System integration with CODA Audio amplifier racks
Applications
- SC2-F flown beside or on the top of ViRAY array (35 - 200 Hz) increases the array length and enlarges the system long throw capability
- SC2-F flown behind the ViRAY array (35 - 100 Hz) provides a distinctive punch to the system
- SC2-F in array between ViRAY cabinets (35 - 200 Hz) avoids balcony reflections
- SC2-F ground-stack with ViRAY (35 - 200 Hz) compact and powerful solution for smaller venues

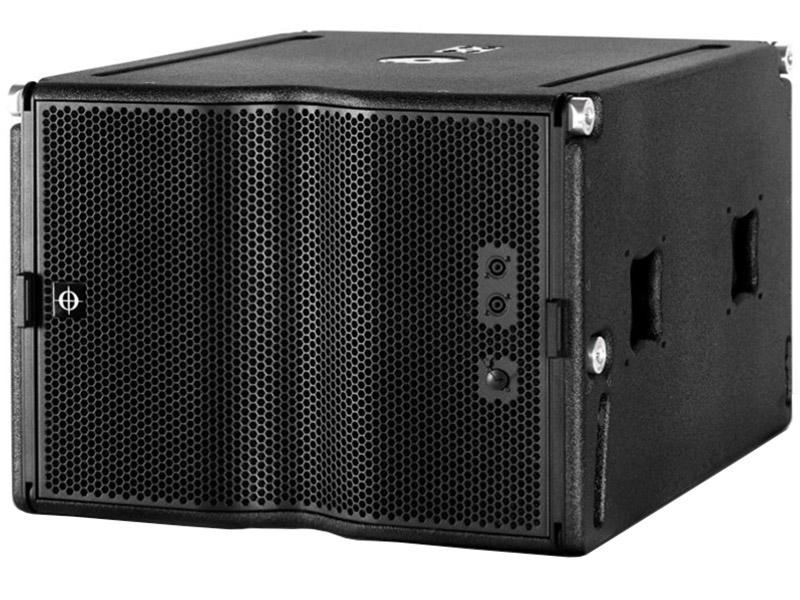

SCV-F : Compact 18" Sensor Controlled Subwoofer
Compact 18'' sensor controlled subwoofer, Extended frequency range down to 25 Hz (-6 dB)
TThe CODA Audio award winning sensor controlled technology is extended with the compact SCV-F subwoofer. Combining a closed feedback-loop control with large, low noise laminar flow ports the SCV-F subwoofer offers increased output and well controlled response.
When it comes to subwoofers, CODA Audio has a sizeable offering of extremely smart boxes for a wide range of applications. What's particularly smart about these subs is the fact they are sensor controlled, which means they're way ahead of the field from the offset: these speakers are capable of delivering measurable and very audible advantages in impulse response, group delay, waterfall, and the distortion domain.
In short, between 35 and 100 Hz, the audio is time aligned; and the group delay increases slightly in the 25-35 Hz range. As a result, you get an extremely precise and musical low end, with sonic qualities that go way beyond any conventional port loaded system.
At the core of SCV-F (which works in Cardio or Omni mode) are its very efficient, high output double 18-inch long neodymium excursion woofers, which provide a completely flat response down to 20 Hz (-6 dB), and hardly any distortion at all.
Then, as with all CODA products, comes the unique driver capabilities: SCV-F has a built in 'velocity sensor' within its 18-inch driver, which measures the exact movement of the voice coil by sending information over XLR cable to the Comparator about velocity, excursion, and speed of the voice coil itself. In turn, the Comparator then compares the original input signal to the movement measurement from the 'velocity sensor', and adjusts the amplifier driving voltage and/or current, so the diaphragm can move the way it should move.
The Comparator brings Total Harmonic Distortion (THD) down by a massive 80-90%, which means this speaker can be modified without any equalizer or high pass filters: the Comparator not only compensates for the non-linearities of the speaker, but the frequency response as well.
SCV-F was primarily designed to be the perfect LF extension to CODA?s ViRAY line arrays, though it is also suited for a variety of applications in touring and installations, particularly where small footprint, pristine sonic coverage, and controllable bass are paramount.
Main Features
- Compact 18'' sensor controlled subwoofer
- Extended frequency range down to 25 Hz (-6 dB)
- The feedback loop control ensures extreme fast transient response and ultra low distortion
- Flyable or ground stackable in cardio or omni configurations
- Rigging is compatible to VIRAY
- Subwoofer arrays can be curved for perfect time alignment with ViRAY
- LINUS10 DSP-amplifier and comparator provides integrated power and feedback loop control solution
