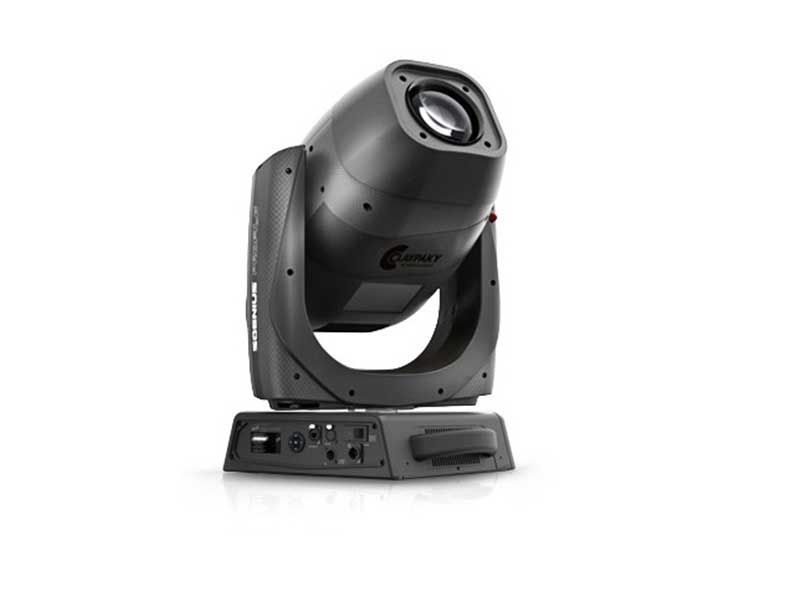

Scenius Profile

C61505

Scenius Profile is the new Clay Paky beam shaper at the top of the Clay Paky moving head range. The optical reflector has been designed specifically for this product, in order to make the projection perfectly uniform across the whole beam opening, avoiding the typical hotspot effect of many spotlights. Its framing system consists of four independent overlapping blades that create shapes of all sizes, not just quadrangular, but also triangular. It works simultaneously on four different focal planes and the exclusive "curtain effect" allows gradual total closure of the shape using any one of the four blades. The shape made may also be turned around itself up to an angle of 90°, either to change its orientation or keep it fixed as the light beam moves.
Its advanced optical unit and the new 1400W OSRAM discharge lamp provide very high light output and CRI. Thanks to its wide 7°-48° zoom, Scenius Profile is perfect for every set. A modern focus tracking system concentrates maximum luminous efficiency precisely on the effect you wish to project, and the focus may be set to be fully automatic.
The CMY color system, the linear CTO, 7 fixed colors, 14 gobos (6 rotating + 8 fixed), rotating prism, 2 variable frost filters, a very precise dimmer enhance the performances of this luminaire.
With all these features, the Scenius Profile is an extraordinary tool for theatrical use, in television studios or on the sets of large events, where it can fashion uniform light beams without limits and frame scenic elements precisely with fixed or animated light.
The optical reflector of Scenius Profile can be replaced with that of Scenius Spot, to obtain a higher luminous peak at the center of the beam.

Features

1400W OSRAM discharge lamp
New optical reflector to ensure perfectly uniform beam projections
Framing System operating on 4 focal planes
Framing System rotation on 90°
7°-48° zoom
Focus tracking system
6500 K output color temperature
Very high CRI
CMY System + Linear CTO
7-color wheel
14 gobos (6 rotating + 8 fixed)
Rotating Prism
16 blades fast Iris
Variable "soft edge" frost
Variable flood frost
Very precise 0-100% dimmer
Fast stop/strobe effect
Light can be run at 1400W or 1200W
Art-Net / RDM
Quiet, reliable and road-ready
Weight: 41 Kg

Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.

Used Clay Paky

Claypaky S.p.A., a subsidiary of the German lighting manufacturer Osram, is a developer of professional lighting systems for the entertainment sector (theatre, television, concerts, nightclubs and outdoor events ) and for architectural applications.
The company is based near Bergamo, about 40 km from Milan, Italy. It operates from a modern facility housing its R&D labs, main production plant and quality control, sales and administration departments. At present Clay Paky exports 95% of its production through a global sales and service organization represented by a dealer network active in more than 80 countries around the world.
The Claypaky company was founded in August 1976, taking its name from the shortened, anglicized form of the name of its founder, Pasquale (Paky) Quadri, one of the first entrepreneurs to realize that technological developments in lighting would have an enormous future in the show business and entertainment world.
In 1982 Claypaky presented the Astrodisco, which used a single lamp to project multiple rays of colored light across ceilings and dance floors. Five years later it launched Brilliant, a digitally controlled moving head and forerunner of a new generation of “intelligent” projectors.
This was followed in 1988 by the programmable Golden Scan, a moving mirror projector and the first luminaire to implement stepper motor technology instead of servo motors. Acclaimed by the specialised press as “the world’s most popular and best-selling projector”, the Golden Scan became a commonly used lighting effect at nightclubs and rock concerts during the late 1980s and the 1990s.The London rock band Klaxons claimed the projector was the inspiration behind their light-themed, hit single Golden Skans.
Since 2000, Claypaky has also been developing its offer for indoor and outdoor architectural applications. In 2002 it moved its headquarters to a new industrial complex in Seriate (Bergamo), achieving certification for compliance with the UNI EN ISO 9001 quality standard that same year.
Claypaky has experienced constant growth, reporting revenues of more than 50 million euro for 2011, up by over 50% from 2010 (33 million euro). It has a workforce of nearly 200 people. In 2014 the Claypaky founder Pasquale Quadri died and the company has been acquired by Osram.

Safety Cable: A steel cable that has a clip on one end and a loop on the other. It is intended to be threaded through a piece of hanging equipment and around a support structure, such as a batten or truss, and then clipped to its loop. It then acts as a safety support should the primary support, such as a pipe clamp or hanging arm, fail.

Safety Screen: A metal wire screen, placed at the front of an open-face light source, designed to retain large pieces of broken glass should the lamp break.

Sail: The total surface area of an overhead, butterfly, scrim, flag or cutter.

Saturation: The aspect of color that determines the difference from white at a constant hue, i.e., the property of any color that distinguishes it from a gray of the same brightness. High saturation is one with little or no white light added to the color, like deep red. Low saturation is one with a large amount of white light added to the color, such as light pink.

Scoop: Named for its scoop-like shape, an open face flood light with a large, diffuse reflector that is essentially the body of the light source. The reflector is parabolic, spherical, or ellipsoidal and is generally made from unpainted aluminum.

Screw Base: A threaded, cylindrical shaped lamp base with a single contact on the bottom. The threaded part of the base holds the lamp into its socket and acts as the second contact.

Scrim: In the theatre industry, a thin, gauze-like curtain. When illuminated from the front, it appears opaque, and when illumination is present behind it but not on it, the scrim becomes almost transparent. It can also appear translucent when there is some illumination directly on it, and some illumination present behind it, in the proper proportions. In the film and video industries, a fabric panel, used for dimming, with the light source being a lamp head or sunlight. They are available in variety of sizes and shapes and materials of varying density. In the film and video industries, a round, framed metal screen, available in various densities, placed on the front of a light source to act as a dimmer. They are also available so that only half of the frame is screened, therefore allowing for only a portion of the light to be dimmed. For us, a metal screen used in front of a light to reduce intensity without diffusion.

Scrim Set: A set of metal scrims comprising a full double density, half double density, full single density and half single density.

Sealed Beam Lamp: A lamp with an integral light source, reflector and lens, all of which are either sealed within, or are a part of the envelope.

Shutter Blade: A single framing shutter.

Shutters: Short for Framing Shutters. A rectangular, metal apparatus that resembles a Venetian blind in form and function, generally used as a mechanical dimmer or blackout mechanism on large spotlights.

Side Light: Illumination of a subject from the side to place the subject in depth. A light source that provides such illumination.

Silk: Specifically, a fabric used for linear diffusion material it spreads the light linearly. It can be made from natural China silk or nylon. Generally, a scrim used in the film and video industries that is made from silk.

Single Ended Lamp: A lamp that has only one base and all of its contacts on the base.

Snoot: A cone-shaped accessory that mounts on the light to confine the beam to a very small spot.

Soft Edge: A beam pattern edge that is not very clear and distinguishable, i.e. one with a fuzzy or blurry perimeter.

Soft Light: Illumination that produces shadows with a soft edge. A light source that provides such illumination.

Solid: An opaque panel, usually made of fabric, placed into the beam of a light source to block a portion or the entire beam.

SP: A lamp designation that means spot.

Specular: A term used to describe a surface that is highly reflective or mirror-like the kind of hard light from a small, pinpoint light source.

Specular Light: See Hard Light, definition #1.

Spot: Short for Spot Light. The position of a focusable lamp, lens or pair of lenses on a spotlight that produces the most narrow field angle. To mark a location on which a light source will be focused. A term used to describe a round light pattern.

Spot Light: Generally, any of several types of light sources capable of emitting a beam pattern that is round, or in some instances, oval in shape, but more specifically this term refers to Fresnel spotlights, ellipsoidal spotlights and follow spots.

Spun Glass: A diffusion material made from glass fibers.

Stand Adapter: An apparatus used for mounting any one of a number of devices to a stand.

Strip Light: A multi-lamp light source with its lamps mounted in a straight row.

Strobe: Short for strobe light. See Flash.

Strobe Light: (Flash) A tube filled with xenon gas through which an electrical charge of high voltage is passed to create an electrical arc that emits a short, bright flash of light. Flash light is daylight balanced, usually measuring 5500° Kelvin. See Flash.

Stud: A metal protrusion, generally 3/8", 1/2", 5/8" or 1 1/8" in diameter. It is used to mount light sources and assorted grip equipment to a receiver such as a light stand. Studs also have wide, circular grooves designed to captivate the tip of the tee-handle or bolt provided with the receiver. This prevents the receiver-stud combination from unintentionally uncoupling, and can also prevent the stud from rotating once it`s seated. Any threaded metal protrusion used to mount light sources and assorted grip equipment via a nut or threaded socket.

Studio Fresnel: A Fresnel spotlight used primarily in studios for the film and video industries. Because portability is generally not a concern, these tend to be larger than location Fresnel`s of the same wattage.

Three-Point Lighting: The standard lighting system of key, fill and back lighting from which all other lighting setups evolve.

Transformer (Xformer): An item that converts voltage from one value to another. There are two basic types, electronic and magnetic, and both come in many configurations.

Translucent: A term used to describe something that transmits light, but scatters light rays so that a clear image cannot be seen through the material.

Transparent: A term used to describe something that transmits light without scattering light rays, so that a clear image can be seen through the material.

Tungsten: An element used to manufacture lamp filaments. It has a melting point of approximately 3400°.

Tungsten-Halogen: A term used to describe a family of lamps that use the halogen gas iodine, an envelope made of quartz, and a filament made of tungsten, in their manufacture.

Tweenie: A 300-650 watt Fresnel spotlight.

Twofer: A special power cord that has one male connector electrically connected to two female connectors via two separate cables or sets of sleeved wires.

Two-Pin Base: A lamp base with two narrow, parallel pin shaped contacts protruding from the bottom.

Ultraviolet (UV): A reference to anything that uses or emits ultraviolet radiation. Electromagnetic radiation having a wavelength longer than x-rays but shorter than violet light, approximately 40nm to 380nm.

Ultraviolet Light (UV Light): Although not actually light, this is a commonly used term for Ultraviolet Radiation.

Ultraviolet Radiation (UV Radiation): Invisible electromagnetic energy, of which the longer wavelengths are used to excite fluorescent materials. The wavelengths below 320nm are potentially harmful to human tissue.

Unit: A term that is often used interchangeably with light source.

Warm Color: Generally, a color that is in the yellow-orange-red range.

Warm Light: Light having a color temperature of approximately 2600°K3400°K, or yellow-white to red-white.

Wash: An even overall illumination covering a large area.

Wash Light: A light source used to produce a wash.

Watt (W): A unit of measurement for heat or electrical power.

Wavelength: The distance, measured in the direction of propagation, of a repetitive electromagnetic wave between two successive points.

Xenon: A gas used in some arc lamps that allows for a point source with extremely high luminous intensity and a color temperature of approximately 5500-6200°K.

Y Cable: See Twofer.

Zoom: Short for zoom focus. Some ellipsoidal spotlights and many follow spots have a zoom-focus system.

Zoom Focus: A term used to describe an optical system whereby the lenses in a light source adjust so that a beam pattern with a hard edge can be attained at various sizes at various distances without sacrificing beam lumens.
