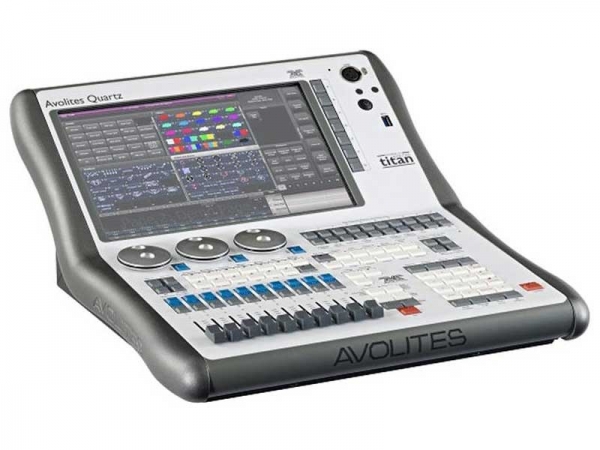

Quartz
The full power of Titan, anywhere?
The Quartz is the newest addition to the Titan Mobile family, complete with on-board processing and a bright, vibrant 12.1 screen, in our smallest full-featured console. Super compact, measuring only 42.5cm wide, the Quartz is the ideal companion for all your lighting projects, from touring and festivals to clubs and one-offs.
Featuring the same high quality faders and hardware you 've come to expect from Avolites, the Quartz can go anywhere you can, ideal for life on the road.
Offering full compatibility with Multi user, the Quartz is also perfect for use as a back-up or extra programming surface, cutting your programming time. The Quartz is ready to benefit from multi band Sound to Light Triggering functionality, offered in Titan version 9.
Combine your new Quartz with a Titan Mobile Wing for a massive 30 precision playback faders and 50 programmable executable buttons all packaged up in a travel case you can throw in your car or hold luggage.
Features
- Super compact form - just 42.5cm wide
- 4 physical DMX XLR-5 connectors
- 16 DMX universes from the console - 8192 channels
- Compatible with Titan Net - up to 64 universes
- Gigabit network port for Titan Net, Artnet and streaming ACN
- Built in MIDI input, no extra boxes required
- 10 precision playback faders
- 3 high quality optical encoders
- Compatible with Titan Remote
- 20 programmable macro buttons
- Supports multi-band Sound-to-Light
- Bright and vibrant 12.1" angled touch sreen with brightness control
- DVI-D for external display
- Headphone output
- Button layout harmonised with the rest of the Titan range
- Robust construction - built for life on the road
- Conveniently located front panel mounted super speed USB3 port
- Expandable with Titan Mobile Wing through dedicated USB port
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Used Avolites
Avolites Ltd is a multinational technology company based in Park Royal, London. Avolites manufactures high end professional lighting control consoles, stage dimming equipment, and media servers for use in the professional stage lighting and media control systems industries.
In 2011 the company expanded into the media server sector of the entertainments technology market by acquiring software developed by Immersive Ltd, supplying control systems used in the 2012 Olympics opening ceremony, and the 2014 Winter Sochi Olympics ceremonies.The company has received awards for many of its products, including the ART-series dimmers, the Sapphire Media, and the Ai media server software.
Avolites started as a lighting production company in 1976 when a group of touring road crew formed a company to manufacture their designs for a touring dimmer rack, the Avolites FD dimmer.The company then expanded into manufacturing lighting control consoles, initially releasing the 8100 series, before creating the QM500 series in 1983. During the 1980s the reputation of the brand grew[8] and by the late 1980s the company was purchased by Carlton Television.[9] The company was returned to private ownership as part of a management buy out in 1991. Eventually the lighting production work was discontinued and the company focused on equipment manufacturing only.
During the 1990s the company introduced several new products designed to control the range of intelligent lighting products that were emerging onto the market at the time, releasing the Rolacue Sapphire, Pearl 2000 (released 1995), Sapphire 2000 (released 1998) and Diamond II/III consoles. Most of these consoles were based on Motorola 68000 family processors.
In 1996 the company also updated the FD dimmer, replacing it with the Art 4000. During the 2000s the dimmer product range was redesigned again, resulting in the Art 2000 series of racks; the Art 2000i installation racks and - in the later part of the decade - the PowerCube dimmer/distribution units.
In 2001 Avolites launched the Diamond 4 range of control consoles, which was based on a conventional PC motherboard instead of custom made hardware reliant on Motorola processors. Although the custom hardware consoles were still sold and updated in stages during the 2000s, the company gradually moved software development towards the Windows OS running on conventional PC motherboards. This move allowed the company to re-write its lighting control software, resulting in the release of the Titan software series in the late 2000s.
Since the introduction of Titan the company has designed a range of consoles specifically to run the software, including the Titan One USB DMX dongle, Titan Mobile, Tiger Touch and Sapphire Touch consoles, which were all introduced between 2009 and 2012.
Avolites has manufactured a wide range of lighting control products, accessories and software, but is best known for its range of control consoles and dimmer racks.
Professional used lighting equipment.| Professional second hand lighting equipment.| Professional pre owned lighting equipment.
Professional used audio equipment.| Professional second hand audio equipment.| Professional pre owned audio equipment.
Second hand audio gear. | Second hand lighting.
Pro audio equipment, second hand amplifiers, DJ, second hand sound systems, second hand Microphones, second hand Media Players.
Outdoor & Indoor LED screens for sale, LED mobile truck.
Light trussing, Gebrauchte Veranstaltungstechnik, used stage equipment Stage & Theatre lighting products.
Magnetic: A term used to describe an apparatus that utilizes a magnetic field to function.
Magnetic Ballast: A ballast that uses a magnetic field to limit electrical current. These types of ballasts generally do not prevent flicker.
Magnetic Transformer: A transformer that uses a magnetic field to convert voltage from one value to another. Simple common magnetic transformers consist of two wire coils wrapped around an iron core, each winding having its own pair of leads, one pair for the application of an input voltage, and the other pair for the output voltage.
Male: A term applied to a connector that contains the pins, prongs, blades, or tabs for insertion into the holes or slots of a female connector. The male connector should never be attached to the line side of a circuit.
Mercury Vapour Lamp: An arc lamp whose gas is primarily mercury vapour.
Metal Halide Lamp: An arc lamp that uses mercury vapour combined with metal halides, that when heated, radiates light with a color temperature of approximately 5500°K.
MFL: A lamp designation that means medium flood.
Modeling Light: A continuous burning light in the center of a flash unit used to preview the location of the illumination and shadows from the flash burst.
Mogul Base: A lamp base that falls in the larger range of sizes for the type of base in question, i.e., approximately 1 and 1/2" diameter for screw and pre-focus type bases, approximately 1 and 1/2" post-to-post distance for bipost bases and approximately 1 and 1/6" prong-to-prong distance for end prong and extended end prong bases.
Muslin: A material used for fabric scrims used in the theatre, film and video industries. Also used in the manufacturing of backgrounds.
MR Lamp: Originally, this designation meant a lamp with a small, integral, multi-faceted reflector, but has since come to designate a lamp with a small, integral, mirrored reflector. The reflector could be parabolic or ellipsoidal.
Mylar: A type of plastic that can withstand fairly high temperatures and is used in the manufacture color media.
N: Nanometer (nm). A unit of measurement commonly used for wavelengths of light, equal to 1/1,000,000,000 meters.
Neutral Density Filter: A filter that reduces the intensity of light without affecting its color.
NFL: A lamp designation that means narrow flood.
Noise: Short for Electrical Noise.
Non-Dim: A term used to describe a circuit that does not pass through a dimmer. A term used to describe a load that is not intended to be connected to a dimmer.
NSP: A lamp designation that means narrow spot.
O: Open Face. A term used to describe the light sources that use no lenses.
Operating Pole: A long, lightweight rod with a handle on one end and an attachment on the other for the purpose of adjusting or switching on poleoperated yokes, light sources, pantographs, etc.
Overhead: A large scrim, diffuser, reflector, or opaque fabric panel, used for dimming, softening, bounce lighting and shading, respectively, with the light source being a lamp or sunlight. They are usually 12` to 40` square and mounted on stand-supported frames.
PAR: An abridged version of Par Lamp, Par Can or Par Light.
Parabolic Reflector: A reflector designed to align light rays generally parallel to the axis formed by the point source and the center of the reflector, eventually resulting in a cylindrical-to-wide beam. The reflector has the shape of a parabola.
PAR Can: A generally lightweight light source that uses a PAR lamp, or in some cases, ray light reflector kit. The light beam characteristics depend on the type of lamp used.
PAR Lamp: A designation for a lamp with a parabolic aluminized reflector.
PAR Light: A generally lightweight light source that utilizes a PAR lamp. The beam characteristics depend on the type of PAR lamp used.
Pattern: A very thin, heat-resistant metal plate with a pattern cut out of its surface. When placed into the aperture of an ellipsoidal spotlight or follow spot via the pattern slot, an illuminated representation of the design is projected as the light shines through the cutouts.
Pattern Holder: A metal frame with a knob used to place patterns into the pattern slot of a light source.
Pattern Rotator: A motorized pattern holder that spins the pattern.
Photometric: A term used to describe anything that involves the measurement of light.
Photometric Data: Measurements of light and its properties.
Photo-metrics: Short for Photometric Data.
Photometry: The science of measuring light and its properties.
Pigeon: A small metal plate with nail holes and a 5/8" stud attached.
Pigtail: The relatively short electric cable, power cord, or leads on a light source or piece of power distribution equipment that may or may not have a connector installed.
Pigtail Connector: A connector that is installed on a pigtail.
Pin Spot: A spotlight that has an extremely narrow beam.
Pipe Clamp: A "C" shaped clamp with jaws that attaches onto a pipe and locks with the aid of a bolt, that when tightened, bites into the pipe and locks the clamp in place. It also has a secondary bolt for the attachment of light sources, distribution equipment, etc.
Plano: A term used to describe a lens side that is perfectly flat.
Plano-Convex Lens: A lens that is flat on one side and convex on the other. These lenses focus light rays passing through them into a beam.
Polarizing Filters: Polarizing camera filters can be set to reduce most glare, as well as darken blue skies. Best camera angle: 90° to the source light. Light loss: approximately two stops.
Pole Cat: In the film and video industries, a spring loaded, adjustable cross bar that when placed between a pair of walls or structures, allows for the attachment of lightweight light sources or grip equipment.
Pole-Op: Short for Pole-Operated.
Pole-Operated: A term used to describe a light source, yoke, pantograph, or other apparatus that can be controlled via an operating pole.
Pot: Short for Potentiometer.
Potentiometer (Pot): An electrical component that has the ability to vary the resistance in an electrical circuit. It always has a means for adjustment, such as a knob or handle, to make your light source brighter or dimmer.
Pyrex™: A type of borosilicate glass that can withstand very high temperatures, used for lenses and mirrors. Manufactured by Corning Glass Co., the name Pyrex™ is trademarked.
Quartz: Short for Fused Quartz.
Quartz-Halogen: See Tungsten-Halogen.
Quartz-Iodine: A term used to describe a family of tungsten-halogen lamps that use the halogen gas iodine and an envelope made of quartz in their manufacture.
Reflector: Generally, anything that causes reflection. A metal or glass apparatus, usually curved in some manner, used in most light sources for the purpose of directing light rays from a light source. In the film and video industries, a metallic or reflective fabric panel, used for bounce lighting, or simply to redirect light, with the light source being a light source or sunlight. They are available in a variety of sizes and shapes and materials of varying reflectance.
Reflector Board: A reflector for the film and video industries made out of a solid, lightweight, metallic coated material. One side is usually mirror-like for hard light reflection, and the other side is diffused for bounce lighting.
Refraction: The bending of electromagnetic radiation, such as light or heat, as it passes obliquely from one medium to another of different density.
Reporter Light: A compact, lightweight, handheld floodlight often used in conjunction with video cameras and often powered by batteries for portability.
Rim Light: Back light that usually refers to illuminating objects. A light source that provides such illumination.
Rocky Mountain Leg: A height adjustable leg on a stand, usually a grip stand.
